Can I draft these two surfaces?

[Wuzhee]

Hi.

Question is the subject. How can I draft these two surfaces separately?
When I select the purple cylinder, it selects the sphere also.
I know a workaround for this, but I'd like to know whether drafting can make it happen.



[LWolf]

if you attach the part, you might get some answers...

regards,
LWolf



[Azzazil]

Try to play with 2 drafted cylindrical bodies and after add sphere to them.

Regards,
Azzazil

CATIA v5 Assmebly Manager App:

https://www.youtube.com/watch?v=po7kAOiEkZ0&ab_channel=JoeNitnelav



[Wuzhee]

Fair enough. Here it is.
It's a copied solid because I can't share the base model. But I made it in surface with cylinders and sphere then trimmed the whole to get this form and created a solid with Close Surface.
I know there are several better ways to make this but I'm curious if it can be drafted this way.



[Azzazil]

Please upload it like STEP file.

Regards,
Azzazil

CATIA v5 Assmebly Manager App:

https://www.youtube.com/watch?v=po7kAOiEkZ0&ab_channel=JoeNitnelav



[weagan22]

Order of operations:
- Draft the 2 surfaces independently.
- Trim the drafted surfaces together.
- Fill the corner with tangent continuity.
- Join trim with corner cap.

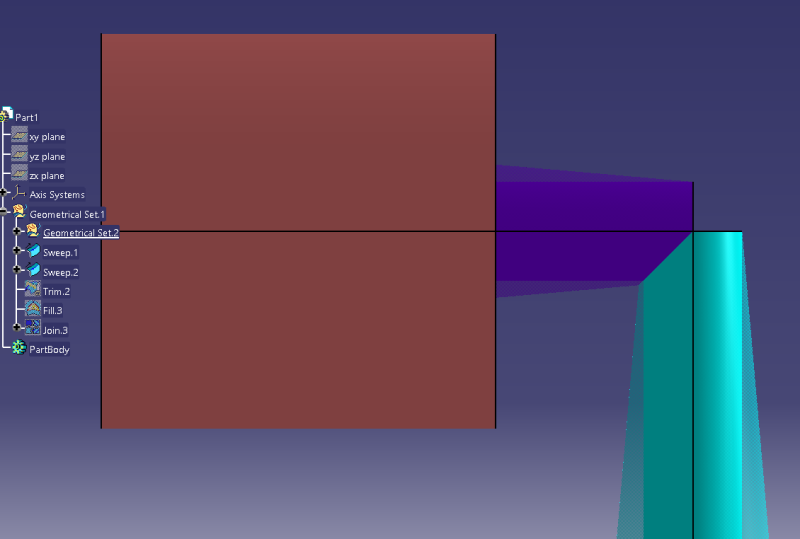

[URL unfurl="true"]https://res.cloudinary.com/engineering-com/image/upload/v1670108328/tips/2022-12-03_14-52-11_emvaiv.bmp[/url]

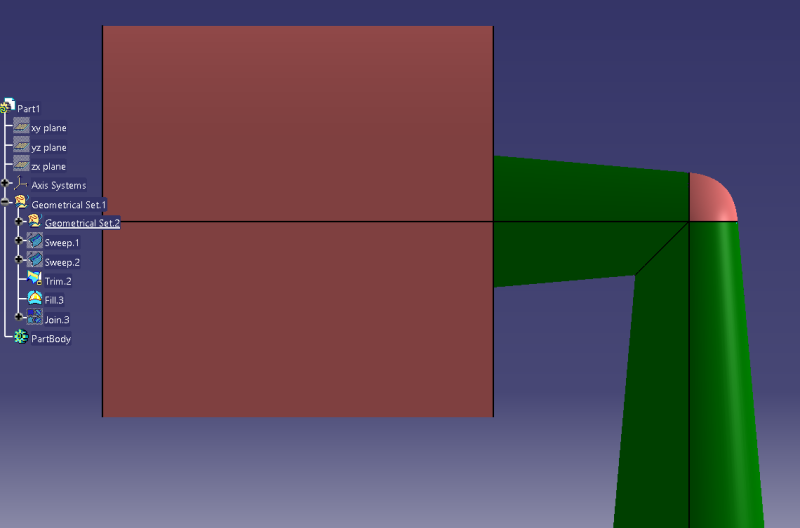

[URL unfurl="true"]https://res.cloudinary.com/engineering-com/image/upload/v1670108337/tips/2022-12-03_14-58-07_etuzti.bmp[/url]

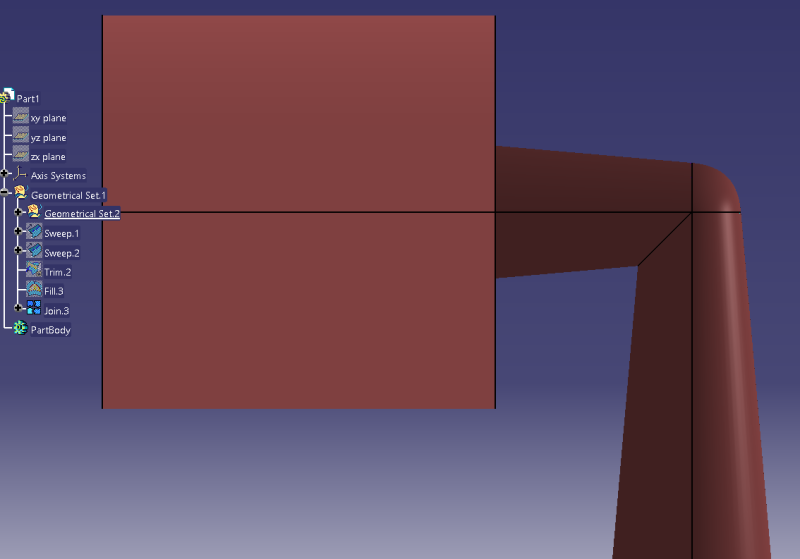

[URL unfurl="true"]https://res.cloudinary.com/engineering-com/image/upload/v1670108342/tips/2022-12-03_14-58-33_xyyqv1.bmp[/url]



[rickyt]

If you want to do it in the Part Design Work Bench.
I would make two separate bodies with draft and rounded tip, then boolean add.
Then put in a fillet to get rid of sharp edge.



[Wuzhee]

Thanks everyone for the suggestions.

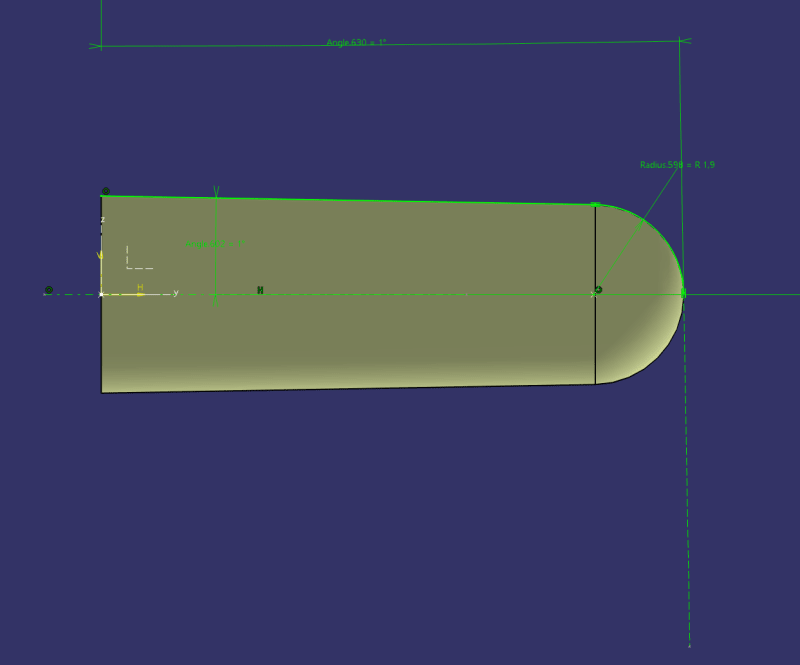

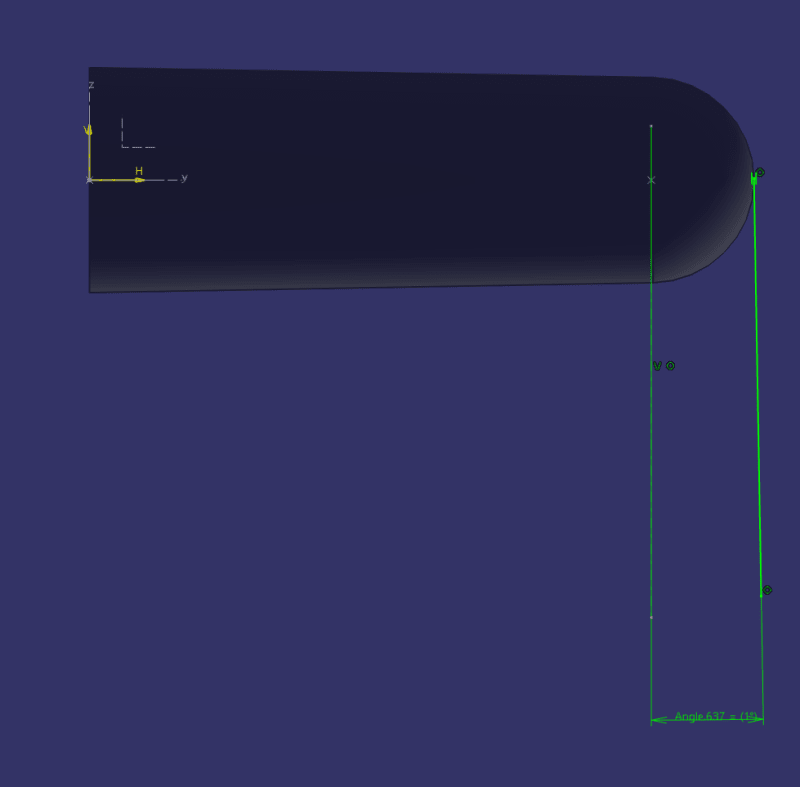

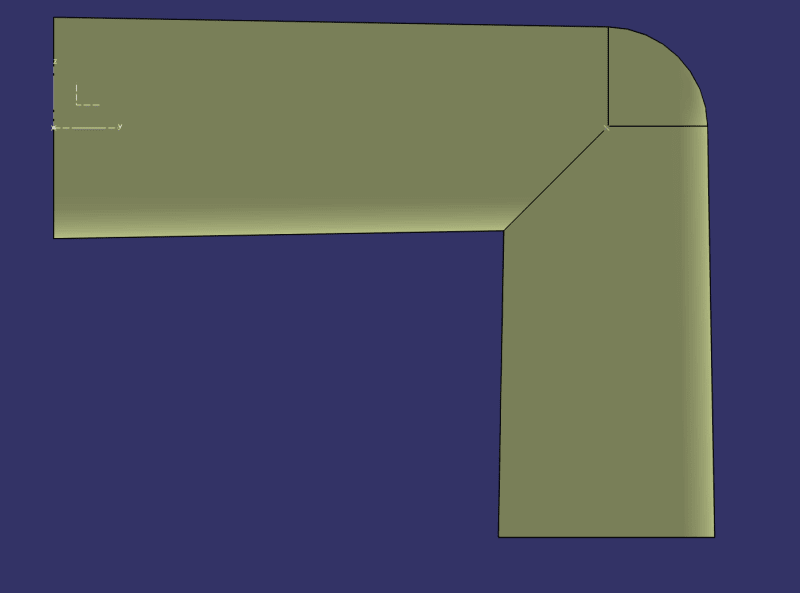

It turns out the tangentially connected faces cannot be drafted in the way I wanted in my opening post. Anyway I accomplished it with revolved surfaces and some trimming.

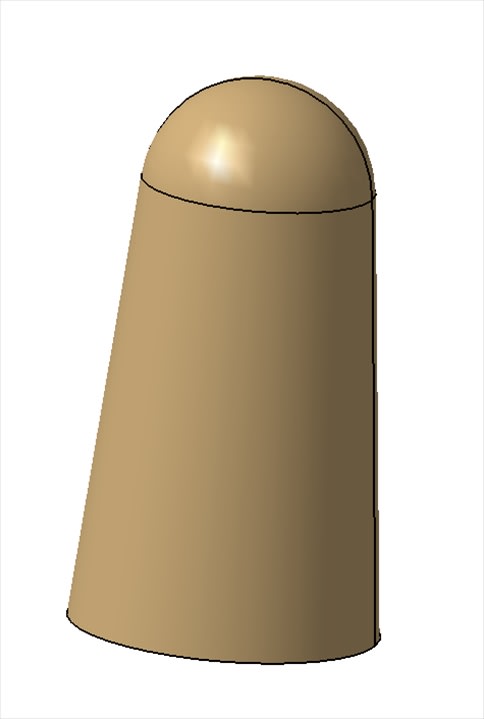

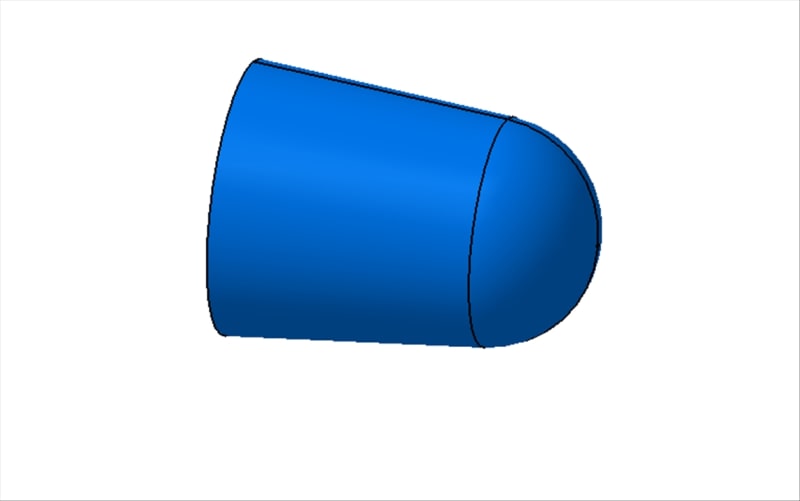

both cones are tangent to the sphere.
