Catia 2D - Dimension Properties management.... 1

Status
Not open for further replies.

CAD2015

Computer
Jan 21, 2006
1,931
US
Hi,

It happened today to work on a 2D file from a previous user:

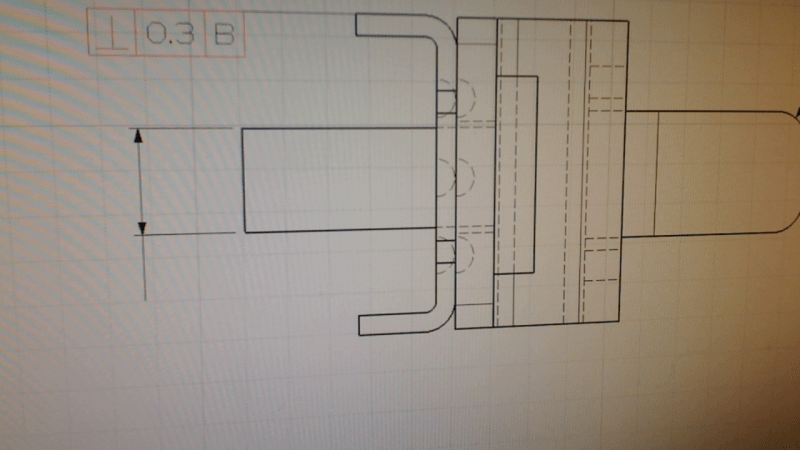

The dimension shown doesn't have any value (SZ115-08013 and everything around it is just regular text), it has been suppressed be the user.

Below is how the dimension looks after I placed in "Hide" the text:



I'd like to know how he did it (I investigated the properties of the dimension, but I didn't see anything abnormal.....
Could somebody explain me how has it been done?
Thanks





CAD 2015

Replies continue below

Recommended for you

RickyT,
Thanks for your prompt reply.

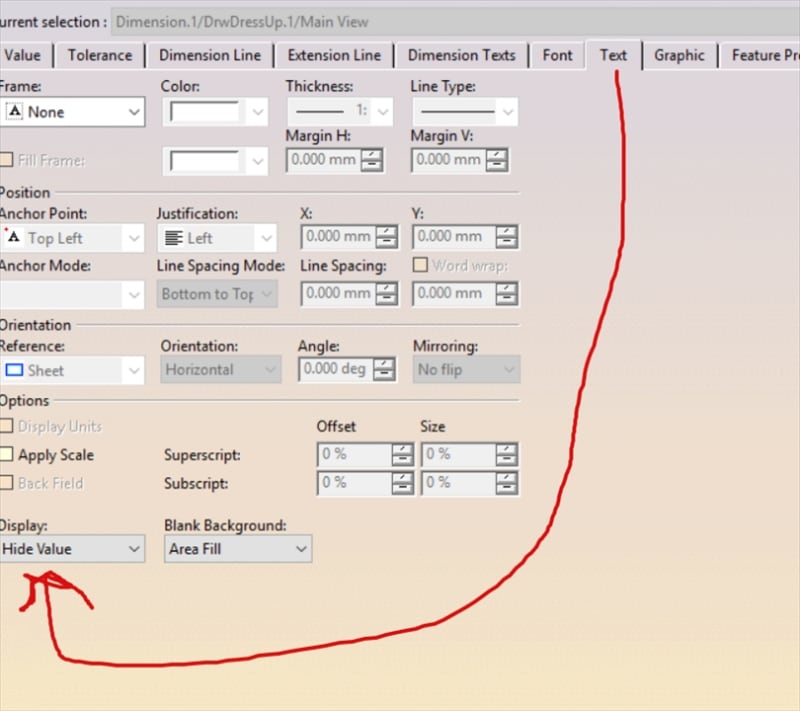

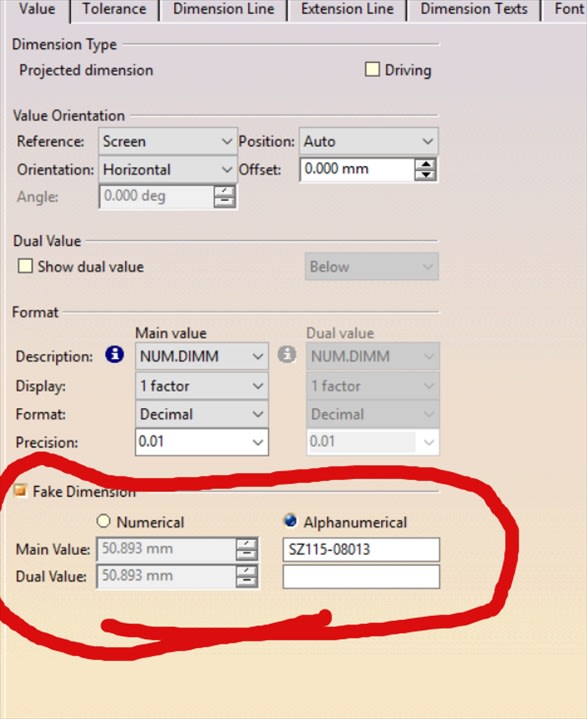

The dimension was on "Hide Value", under Text/Display tab (as you shown).
[2thumbsup]


CAD 2015
