Hi,
How could I create a gap in dimension, in a such way that the value does not interfere?
I need to show a clean value view.....

Thank you!

CAD 2015



[jackk]

You can add a gap in the extension line, if that's what you're asking about. Right-click on the extension line, choose Dimension Object + Create Interruptions



[CAD2015]

Jack,K,

Thanks for your prompt reply.

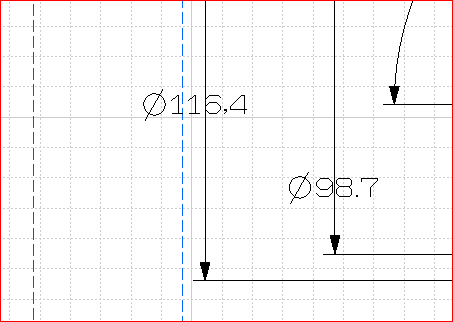

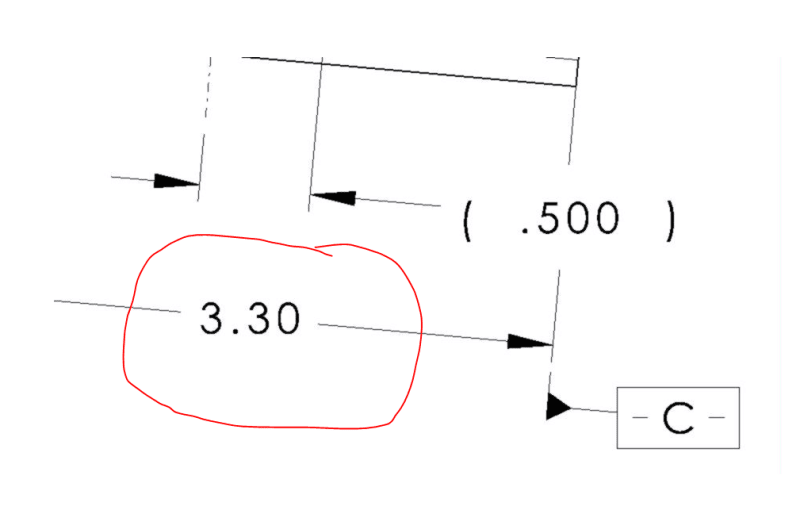

I'd like to have my dimension similar with the one (3.30) shown in the picture you sent:

CAD 2015



[jackk]

the dimension value location should happen automatically, based on which drafting standard you're using. ANSI or ASME will locate the dimension centered on the dimension line, with a gap. (ISO locates the value above the solid dimension line) Use File + Page Setup to choose which standard you're using.



[CAD2015]

Jack,
That's what I was looking for!
Thanks a lot!


CAD 2015
