Catia Distorted view

Status
Not open for further replies.
CAD2015

CAD2015

Computer
Jan 21, 2006
1,931
US
Hi,

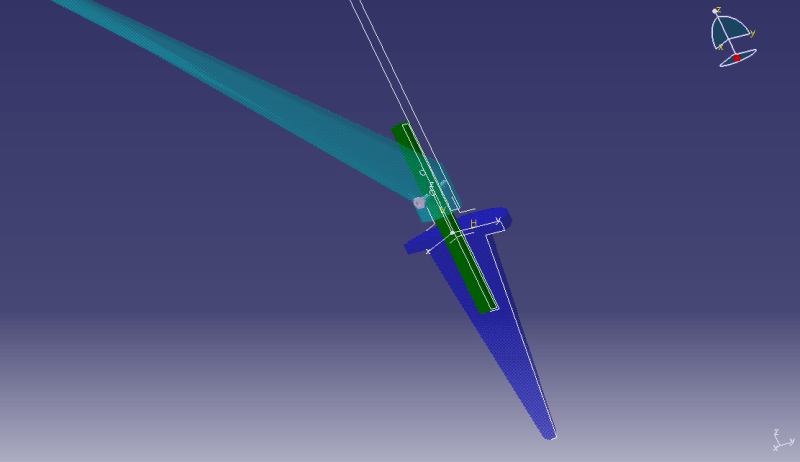

Please, have a look at the first picture below:





It shows how the view of the file when I rotate the geometry.

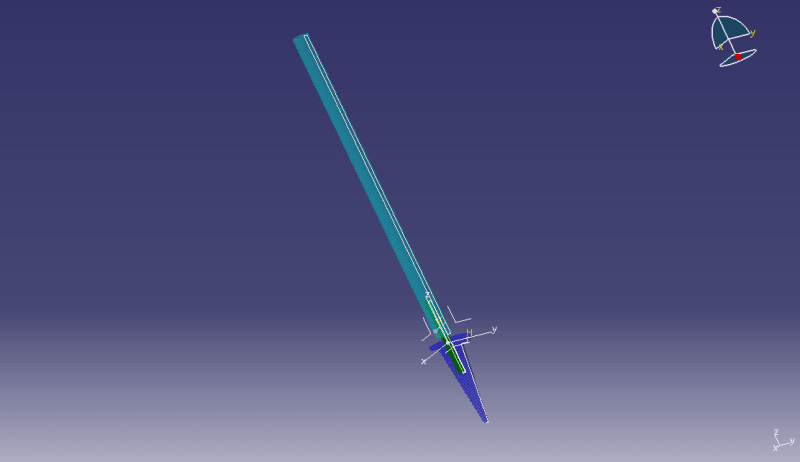

Now, look at the second picture: the same geometry becomes (after Fit All In command) normal (the way it was built).



Why is that, what is happening?

Thanks,
