Catia Macro Drafting Dimension Change

Status
Not open for further replies.

NaWin55

Mechanical
Mar 21, 2020
97
IN
Hi
I want to create a macro to change all the dimensions of the drafting document
i have created this macro but its not working properly.
here is the macro

Option Explicit
Sub CATMain()

Dim myDrawDoc As DrawingDocument
Set myDrawDoc = CATIA.ActiveDocument

Dim drawSheets As DrawingSheets
Set drawSheets = myDrawDoc.Sheets

Dim drawiSheet As DrawingSheet
Set drawiSheet = drawSheets.ActiveSheet

Dim drawviews As DrawingViews
Set drawviews = drawiSheet.Views

Dim i As Integer
Dim oSel As Selection
Set oSel = CATIA.ActiveDocument.Selection
oSel.Clear
oSel.Search ("Drafting.View,scr")
For i = 1 To oSel.Count
Dim Drawview As DrawingView
Set Drawview = drawviews.Item(i)
MsgBox Drawview.Name
Next

Dim drawDims As DrawingDimensions
Set drawDims = Drawview.Dimensions

Dim j As Integer
Dim oSel2 As Selection
Set oSel2 = CATIA.ActiveDocument.Selection
oSel2.Clear
oSel2.Search ("Drafting.Dimension,all")
For j = 1 To oSel.Count
Dim drawDim As DrawingDimension
Set drawDim = drawDims.Item(j)
drawDim.GetValue.SetFormatName 1, "cm"
Next
End Sub

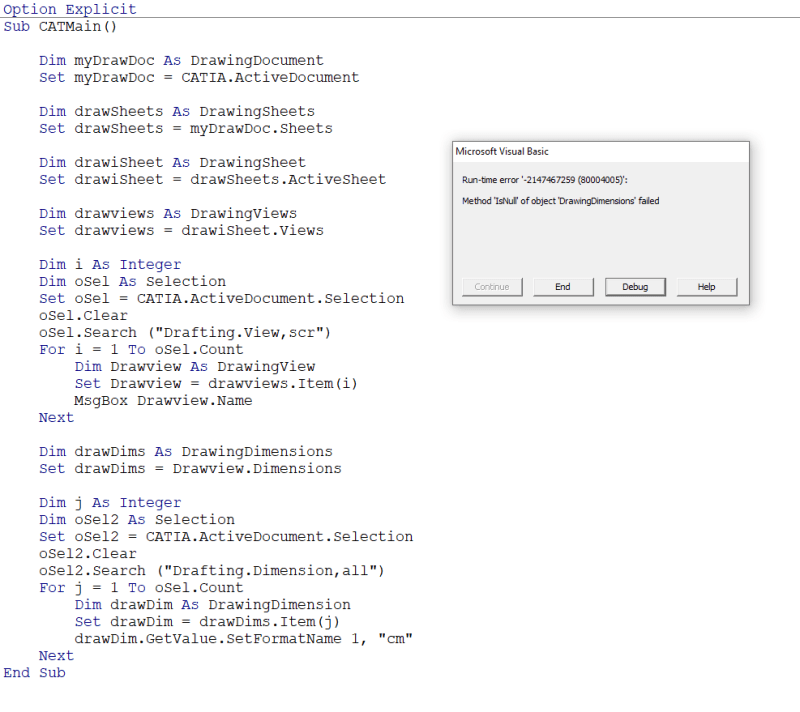

Here is the error

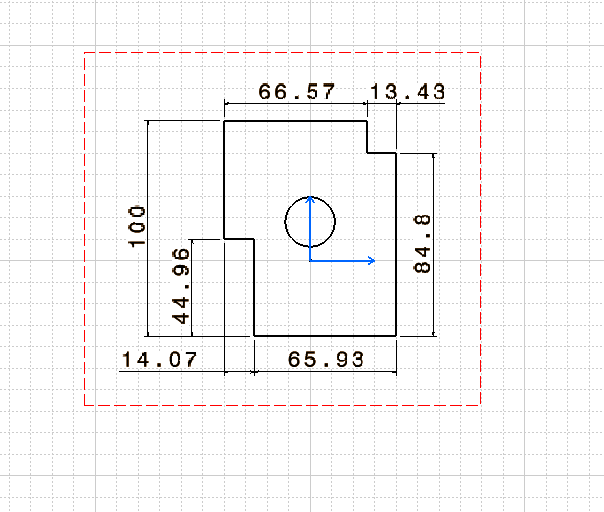

Here is the drawing file image
I want the macro to change dimensions of the drawing doc to cm or mm or m

Thanks
