Closing bead in unparametric part 2

[venomex]

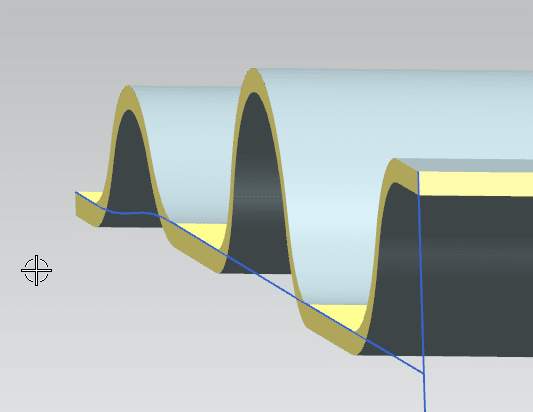

I have a unparametric data for reinforcement. I would like to stop the beads midway and level the other half along the yellow surface in the model. I am unable to get a smooth closed bead while trying to close it.
Any suggestions?

Pratham,
Using NX 11



[jerry1423]

This is an NX12 part.
If possible can you load a parasolid of the part, as I do not have NX12 yet.

Jerry J.
UGV5-NX11



[venomex]

Here you go Jerry



[Toost]

Like this ?
I have done a proposal of the top faces.
Note that the yellow faces isn't a single trimmed face.

( Note picture and model is different. NX12 format)

Regards,
Tomas



[venomex]

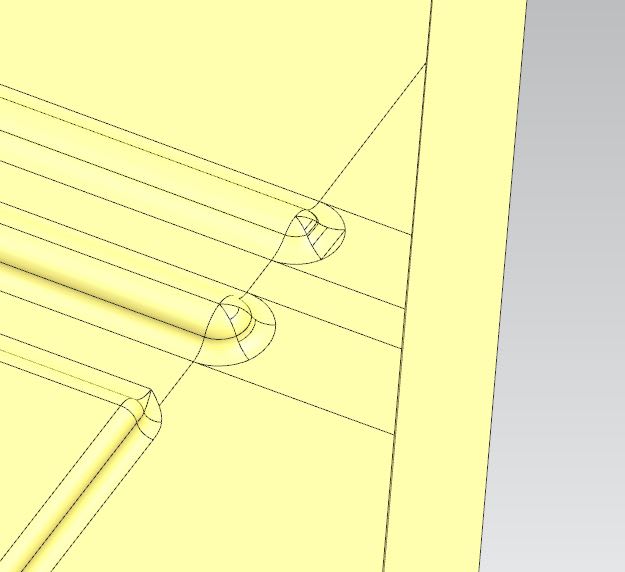

Thanks for replying Toost, but is not exactly what i wanted. I wasnt clear enough maybe. I tried it out myself and got it somehow. Image below is what I've done & what I needed.

Pratham,
Using NX 12



[deedub777]

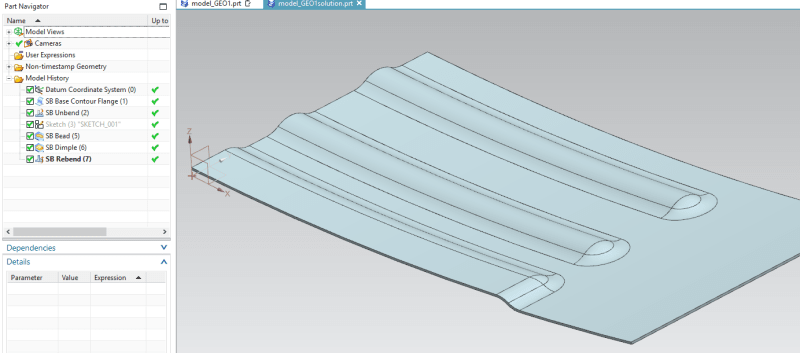

I would recommend using sheet metal.
See attached part
