Curve recognition 3

[CAD2015]

Hi,

Is there any tool, (similar to Feature Recognition) that would convert an ordinary curve into lines and arcs?
Thanks!

CAD 2015



[drewmumaw]

Did you try using extract? What about disassemble in the GSD workbench?

Drew Mumaw

http://www.textsketcher.com

http://www.drewmumaw.com



[CAD2015]

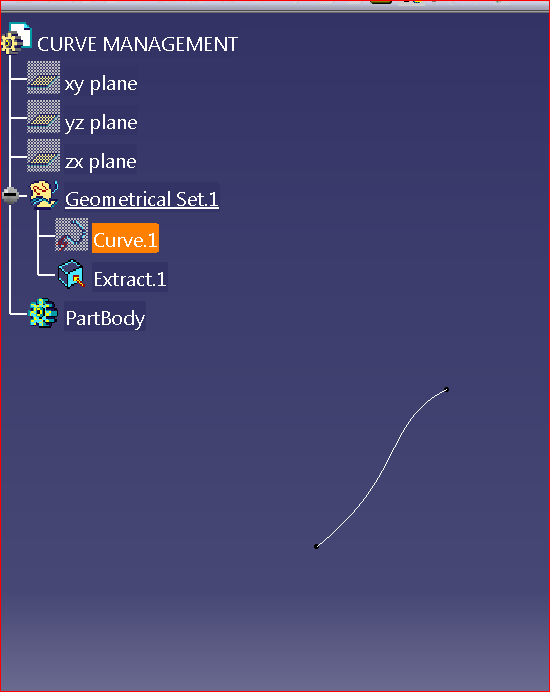

Extract would create a curve:

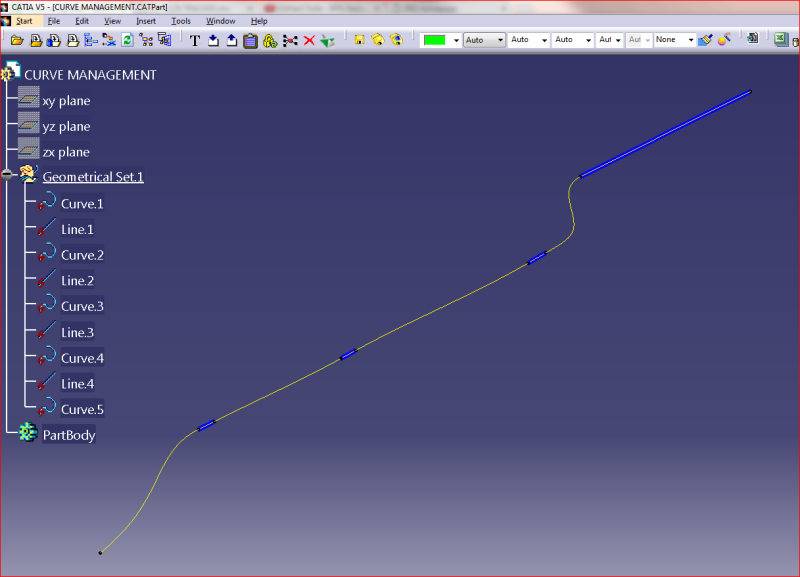

Disassemble in the GSD create lines only......Better something than nothing (I made lines in blue, in the picture)

Any other option available?

CAD 2015



[ferdo]

Hi,

Looks like circles with tangency , anyway, see this video maybe will give you some ideas.... see if you put a plane on planar curve, take screenshot and open in CurveSnap... or put some points on curves and see what you get with with three points arc...

Regards
Fernando

https://picasaweb.google.com/102257836106335725208

- Romania

https://picasaweb.google.com/103462806772634246699/

- EU



[CAD2015]

Thank you, Fernando!

CAD 2015



[itsmyjob]

you can use any measuring tool or the porcupine analysis.. my feeling is that those are not arc...

Eric N.
indocti discant et ament meminisse periti ​



[CAD2015]

Itsmyjob, Thanks!

CAD 2015
