Foreshortened diameter dimension

Status
Not open for further replies.
Barnon

Barnon

Mechanical
Jul 23, 2016
97

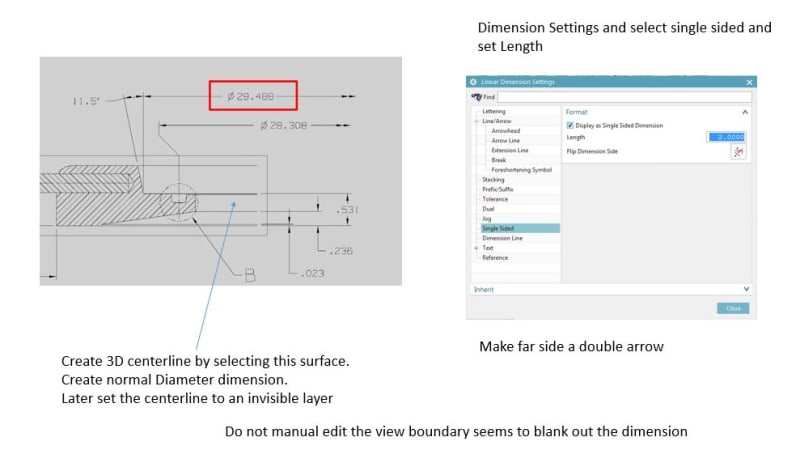

This is an old "how to" I created a while back for myself I thought I'd share. Please let me know if there is an easier way.
