To make part drawings we use sheets.

We have a problem which is that on old parts created in NX1888 when we want to make a drawing and integrate a sheet created in NX2206 the sheet is no longer good

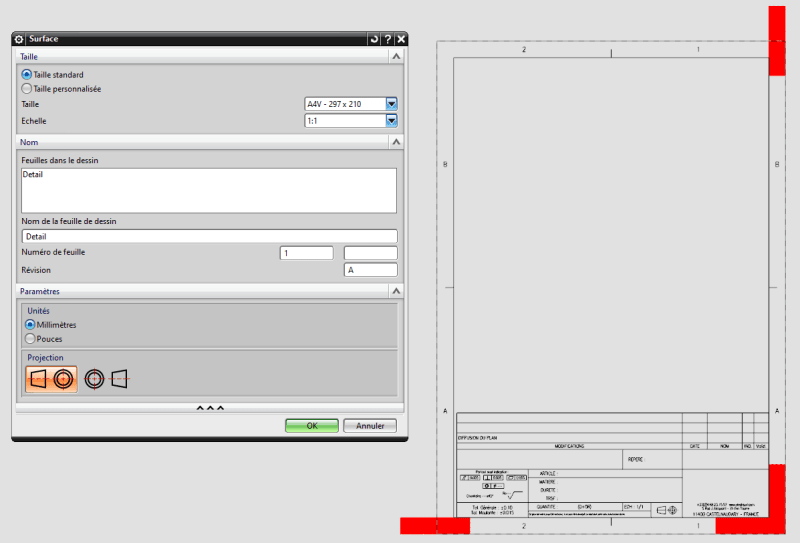

sheet in 2206 :

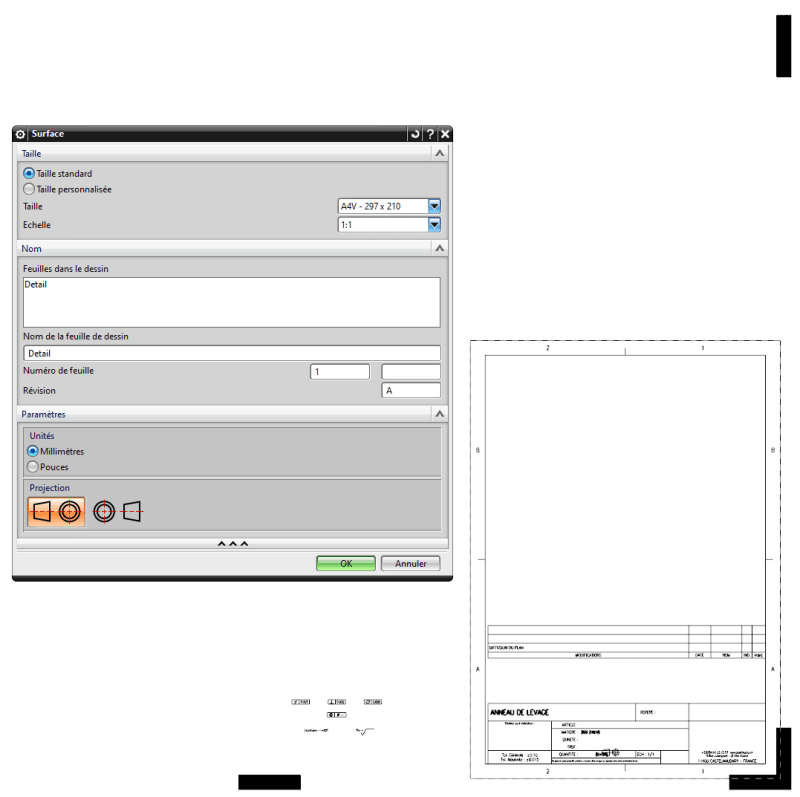

sheet on the parts created under nx1888 :

why is the sheet not recovered as it was created?

THANKS,



[cowski]

At a glance, it looks like a sheet size or scaling issue.

www.nxjournaling.com



[El_Paben]

Good morning,

I checked both and it is the same on both models.



[jerry1423]

Can you post a screen shot showing your sheet sizes ?

Jerry J.
UGV5-NX1899



[SDETERS]

I wonder if the justification of the symbols changed for you. Was that symbol, or were those individual entities?



[El_Paben]

Good morning,

Among the elements that do not follow are: Custom symbol, Annotations, Table.
