Non associative dimension (on 3D) issue

Status
Not open for further replies.
CAD2015

CAD2015

Computer
Jan 21, 2006
1,931
US
Hi,

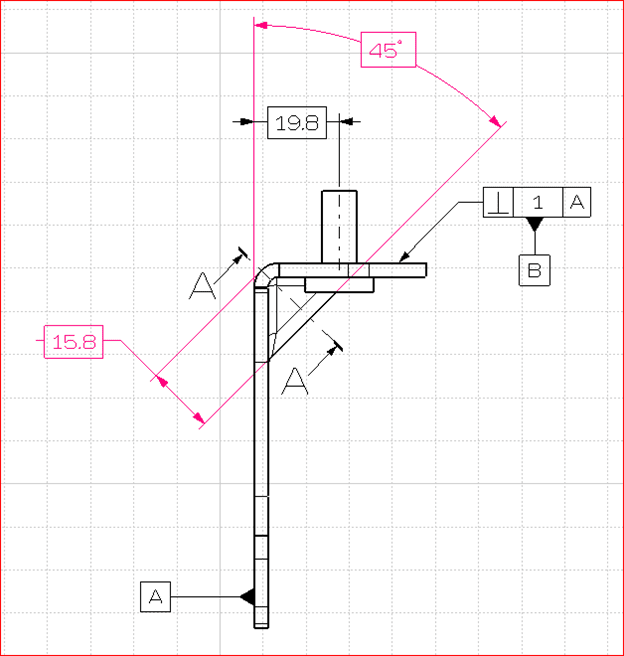

One of the views of my 2D file contain two non associative dimension (grey color).

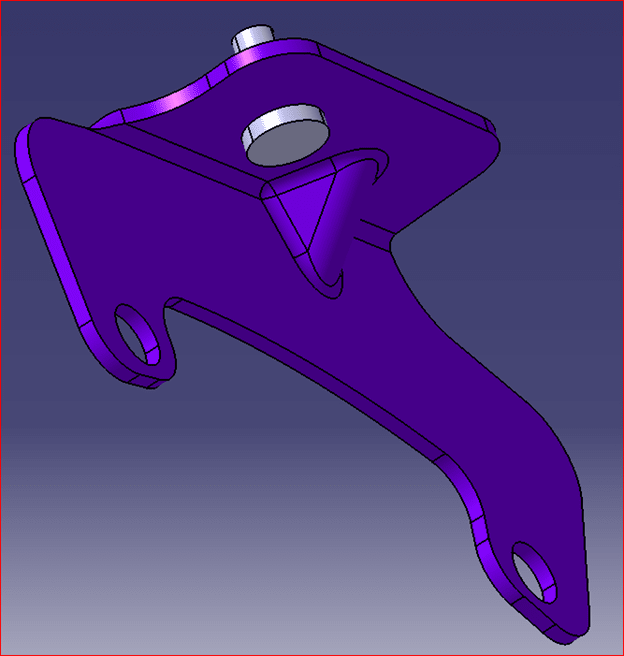

Both of them are linked to the stiffening rib:

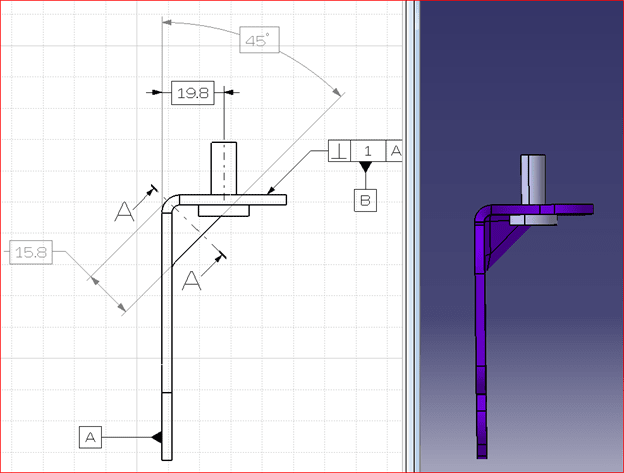

They get red when when I download the 3D file and update the drawing........




Is it possible to get/convert these two dimension on regular dimension?

Thank you...…..



CAD 2015

Replies continue below

Recommended for you

Sort by date Sort by votes
Both dimensions originate from tangents of the bend and the stiffening rib. cut a section and dimension there.
