NX 8.5 gap between flanges

[HenrikRahn]

Hi

I'm new to NX. I have a sheet metal part, where I want to make a gap in a corner. I cannot figure out how to do it, do you have any hints?

http://files.engineering.com/getfil...3-3267-4d02-bdb6-e1e566249b07&file=Corner.PNG



[JohnRBaker]

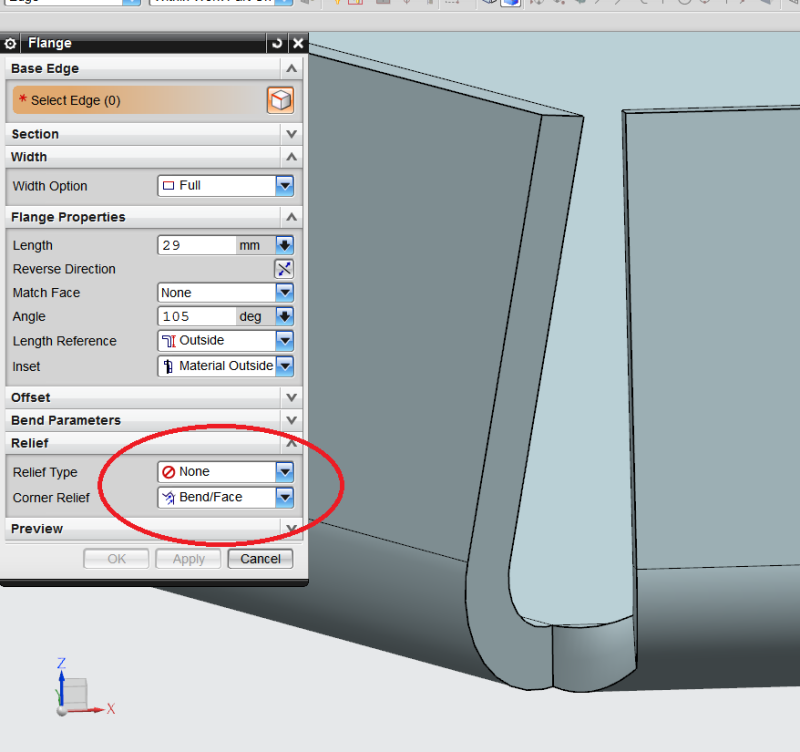

While creating the second flange, set the 'Relief' options as shown in the image below.

John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:

To an Engineer, the glass is twice as big as it needs to be.



[Toost]

You can use the "closed corner" feature to add a gap after your flanges has been created.

See attached part.

Regards,
Tomas
