P&ID symbol for Dual-Speed Pump

BF3_Counter

BF3_Counter

Electrical
Mar 6, 2024
3

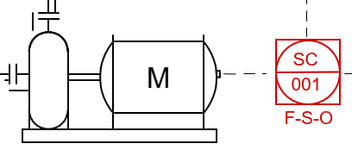

Any suggestions on how to represent control of a two-speed pump (Fast-Slow-Off) on a P&ID? Distributed control system. Something like this?image.jpg
