"Three-Phase Power Explained"

[crshears]

Hmmm . . .

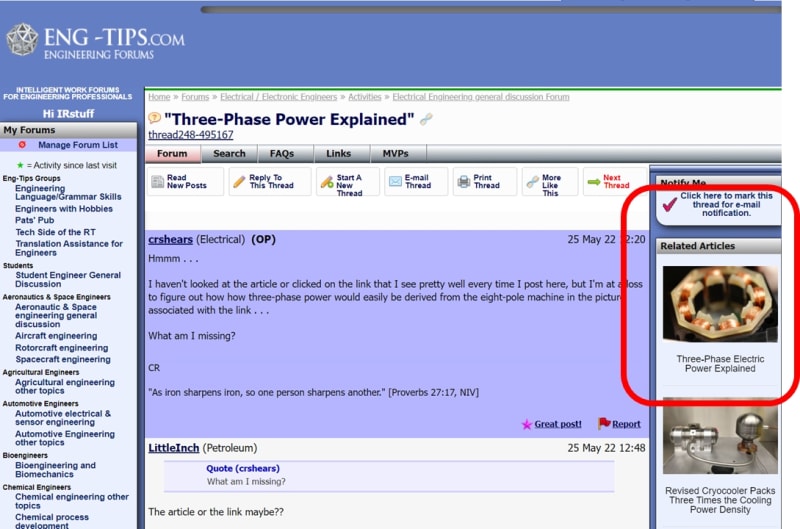

I haven't looked at the article or clicked on the link that I see pretty well every time I post here, but I'm at a loss to figure out how how three-phase power would easily be derived from the eight-pole machine in the picture associated with the link . . .

What am I missing?

CR

"As iron sharpens iron, so one person sharpens another." [Proverbs 27:17, NIV]



[LittleInch]

What am I missing?

The article or the link maybe??

Remember - More details = better answers
Also: If you get a response it's polite to respond to it.



[crshears]

"How three-phase power would easily be derived from the eight-pole machine in the picture" is the question; just a bad choice of picture?

CR

"As iron sharpens iron, so one person sharpens another." [Proverbs 27:17, NIV]



[LionelHutz]

Article is a link on the right. I see your point.



[LittleInch]

This one...

https://www.engineering.com/story/three-phase-electric-power-explained?utm_source=relart-etips

Also maybe I'm a simple pipeline engineer, but the diagram didn't look like a 3 phase generator to me...

Remember - More details = better answers
Also: If you get a response it's polite to respond to it.



[stevenal]

Obviously, the eight pole machine is a motor driving a three phase generator.



[crshears]

Doh! I should have figured that out for myself . . .

CR

"As iron sharpens iron, so one person sharpens another." [Proverbs 27:17, NIV]



[IRstuff]

Sadly, engineering.com isn't particularly notable for the quality of their white papers, or their graphics; in the cited article, their physical schematic of a supposed 3-phase generator actually shows empty space where the windings are supposed to be.

TTFN (ta ta for now)
I can do absolutely anything. I'm an expert!

https://www.youtube.com/watch?v=BKorP55Aqvg

faq731-376 forum1529 Entire Forum list

http://www.eng-tips.com/forumlist.cfm



[Palletjack]

This may sound crazy, but I had no idea what anyone was talking about…
I finally looked right. I don’t think I have ever looked at any of the commercials on the right side.



[electricpete]

I still don't see it on any page, but thanks LittleInch for providing the link (for those of us that still can't figure it out).

I wouldn't necessarily call it an 8-pole machine, but it has 8 stator coils and each coil is mounted on what you'd call a salient "pole" piece if this were a synch machine rotor, so I get why one might call it that.

Regardless of that trivial bit of terminology... agreed, that 8-coil thing would definitely not be part of any balanced 3-phase machine!

I haven't wandered into the engineering.com world a lot. But it sounds like I'm not missing much.


=====================================
(2B)+(2B)' ?



[IRstuff]

Marked in red

TTFN (ta ta for now)
I can do absolutely anything. I'm an expert!

https://www.youtube.com/watch?v=BKorP55Aqvg

faq731-376 forum1529 Entire Forum list

http://www.eng-tips.com/forumlist.cfm
