Rack Pinion - Transient analysis - Ansys Workbench

Status
Not open for further replies.
Joined
Nov 18, 2024
Messages
1
Hello:

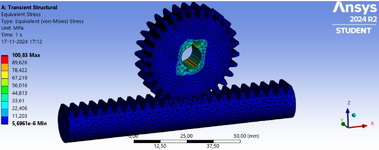

I need help to understand what is wrong in my simulation.

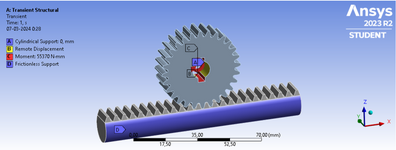

I have used remote displacement. Torque is growing in linear way on 10 time steps wich lasts 0,1 sec each until it reaches maximum torque at 1 sec.




What don't you like about it? Your rack is free to move so the tooth stresses are low. I suggest you do some hand calculations to see what an engineer would expect.
