Radius dimension (extension) 1

[CAD2015]

Hi,

Why the upper radius dimension has an extension?
How could I get it the way the other radius (lower) is shown?

w

CAD 2015



[itsmyjob]

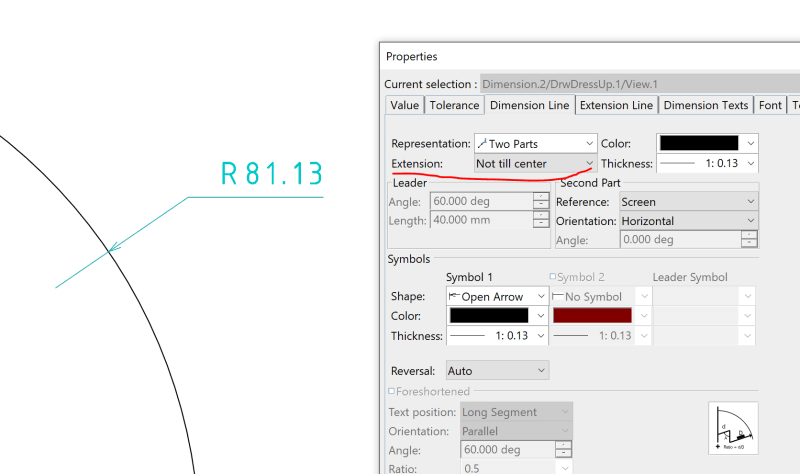

You can remove the option to go to the center in the properties of the dimension:

and in the standard you have the control of the tiny bit:

Hope this help

Eric N.
indocti discant et ament meminisse periti ​



[CAD2015]

Itsmyjob,
Thanks for your fast reply.

I know about the first option; both dimension have been set to "Not till center", but the top one shows different.
I met that particular matter in other drawings; it has something to do with the representation of the 3D edges in drawing.
The second edge express different.
I wish I knew why the Catia reacts in this way...…!


CAD 2015



[itsmyjob]

the inside radius dimension is fine, the extension of the outside dimension is driven by your standard file... check your standard and adjust if necessary.

Eric N.
indocti discant et ament meminisse periti ​



[CAD2015]

I do not get it...…
What "Standard" file means in this context?

CAD 2015



[itsmyjob]

check online doc about drafting standard configuration

Eric N.
indocti discant et ament meminisse periti ​



[CAD2015]

Itsmyjob,
Thanks again!

CAD 2015
