Scale format

[Lars1978]

Hi All,

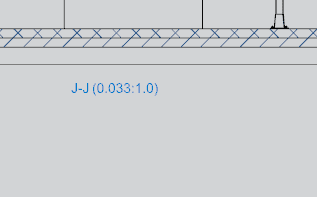

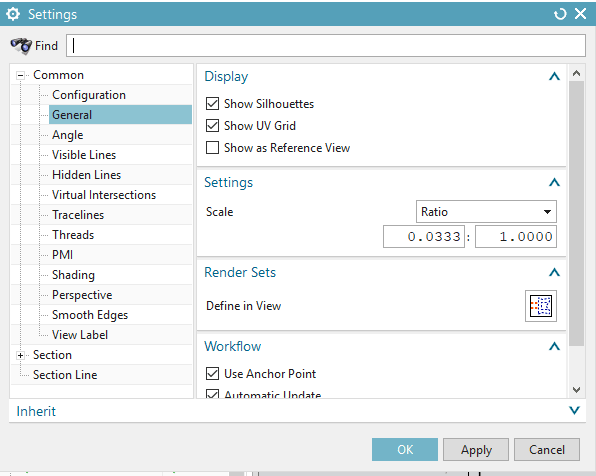

How can I change te scale format of mij view. Please see the pic's below. I'v typed 1:30, the display of my view gives 0.0333:1.0. When I open the view style dialog again the scale format also say's it's: 0.0333:1.0 in stead of het more "readable" 1:30

I understand it's the same scale vallue expect it doesn't look good to me. And yes I'm aware of the fact that im not using "standard" scale vallues

I'd like just to show the drawing view label to show as 1:30 and also in the dialog box this should be nice, if not common sense

Any suggestions?

Lars
NX12.0.1.7 native
Solid Edge ST10
Inventor



[Lars1978]

??

Lars
NX12.0.1.7 native
Solid Edge ST10
Inventor



[Xwheelguy]

That setting is for the view scale and not the view label format - you need to look down that list & expand the Section area. Under that should be the view label settings where you can turn the label & scale off & on as well as set the view scale value format (Ratio, Common Fraction, Single Line Fraction or Scale factorx -> 5x).
