SCALING IN SOLIDWORKS 4

Status
Not open for further replies.

skengg

Mechanical
Jun 19, 2021
130
HELLO,
i have one query,for sand cast part i am creating a pattern and now i want to add shrinkage through scale features. so my question is that does centorid position really affect your scaling propotion. like i made one part whose origin is at base of part but if i create the same part about new origin like center of total length then is there posibility that pattern size would vary?

Replies continue below

Recommended for you

Best thing to do is test it with a single body and a pattern.

It just scaled the bodies, not the pattern for me.



Scott Baugh, CSWP [pc2]
CAD Systems Manager
Dapco, INC

"If it's not broke, Don't fix it!"
faq731-376

Centroid does not affect proportion. You may want to use a fixed point for centroid to keep consistent position.

Shrinkage varies depending on the features, like holes. I usually make a new configuration, scale the part, then make another configuration and add holes/machinable features.

ctopher, CSWP
SolidWorks '17
ctophers home
SolidWorks Legion

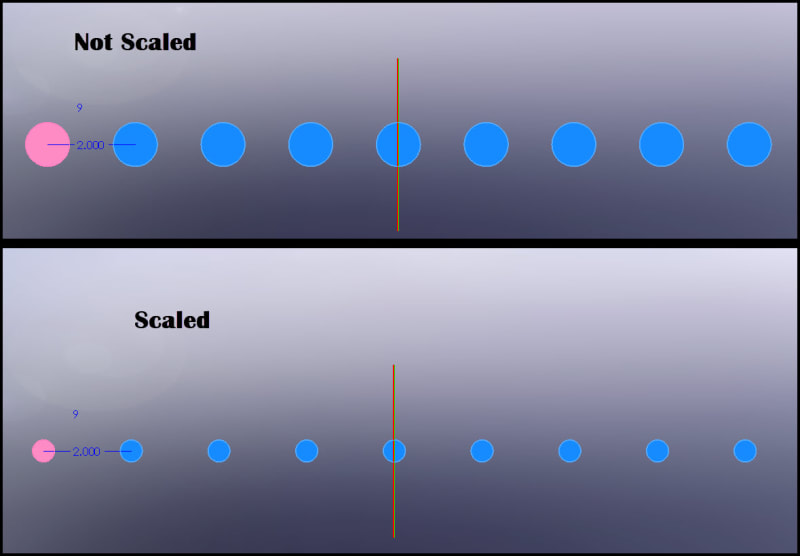

Scale affects what you scale, so if you scaled a patterned set of bodies, then you would change the spacing of the bodies accordinlgy.

If like Scott said, you scaled a body, then patterned it, the pattern is not in the scope of the scale feature and the spacing will stay the same.
