Split a closed contour in GSD

Status
Not open for further replies.
Costin Ruja

Costin Ruja

Electrical
Oct 19, 2011
88
Good evening all !

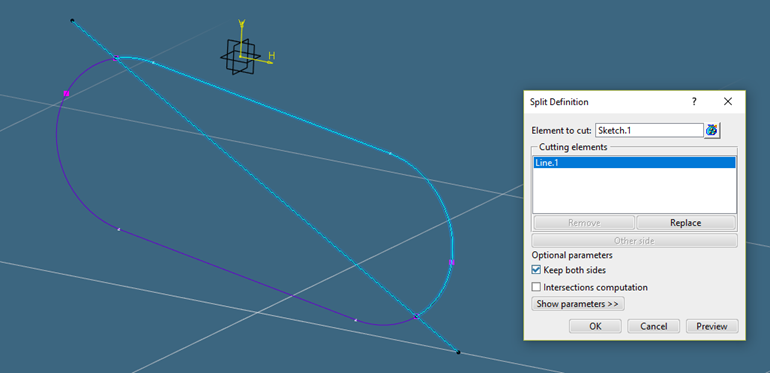

Fot the best part on the last hour I've been trying to split the closed contour which you can see below in 4 segments. I tried it with split function in GSD using either points or small lines (the points lie exactly on the contour. Please advise how can I do this.


Best regards,
Costin Ruja

Replies continue below

Recommended for you

Sort by date Sort by votes


then split each result with point....

Eric N.
indocti discant et ament meminisse periti ​

Upvote 0 Downvote
Perfect !

Thanks a lot !

Best regards,
Costin Ruja

Upvote 0 Downvote
