Oct 7, 2009 #1 cadmantools Mechanical Apr 16, 2009 78 Does anyone know how to add the square brackets that are used on dual dimensions to a note so that it looks the same as size and style.
Does anyone know how to add the square brackets that are used on dual dimensions to a note so that it looks the same as size and style.
Oct 7, 2009 #2 KopCad Mechanical Sep 2, 2005 9 Have a look at the dual dimension function. I've used it with NX5, and its found under Settings - Units. Upvote 0 Downvote
Have a look at the dual dimension function. I've used it with NX5, and its found under Settings - Units.
Oct 7, 2009 Thread starter #3 cadmantools Mechanical Apr 16, 2009 78 Read carefully and you will note that I know about dual dimensions but want to know about using the brackets in a note. Running cad straight out of the box is OK but, a system tuned with application software is the best way to increase productivity. Upvote 0 Downvote
Read carefully and you will note that I know about dual dimensions but want to know about using the brackets in a note. Running cad straight out of the box is OK but, a system tuned with application software is the best way to increase productivity.
Oct 7, 2009 #4 looslib Mechanical Jul 9, 2001 4,205 Read the section in the documentation titled "Symbols and text Control Characters". I tried, but couldn't get it exactly right. It may also depend on what font you are using. "Wildfires are dangerous, hard to control, and economically catastrophic." Ben Loosli Upvote 0 Downvote
Read the section in the documentation titled "Symbols and text Control Characters". I tried, but couldn't get it exactly right. It may also depend on what font you are using. "Wildfires are dangerous, hard to control, and economically catastrophic." Ben Loosli
Oct 7, 2009 #5 phillpd Mechanical Oct 19, 2006 780 You can create these as User Defined Symbols Specialty Engineered Automation (SEA) http://www.sea4ug.coma UGS Foundation Partner Upvote 0 Downvote
You can create these as User Defined Symbols Specialty Engineered Automation (SEA) http://www.sea4ug.coma UGS Foundation Partner
Oct 8, 2009 Thread starter #6 cadmantools Mechanical Apr 16, 2009 78 This function must be already embedded in UG. Better answared by John Baker or GTAC. Running cad straight out of the box is OK but, a system tuned with application software is the best way to increase productivity. Upvote 0 Downvote
This function must be already embedded in UG. Better answared by John Baker or GTAC. Running cad straight out of the box is OK but, a system tuned with application software is the best way to increase productivity.
Oct 8, 2009 #7 potrero Mechanical Aug 30, 2007 516 It IS already "embedded" in NX. While in drafting, select a dimension, then go to Dimension Style>Units>Dual Dimension Format and Units. See the pic: Upvote 0 Downvote

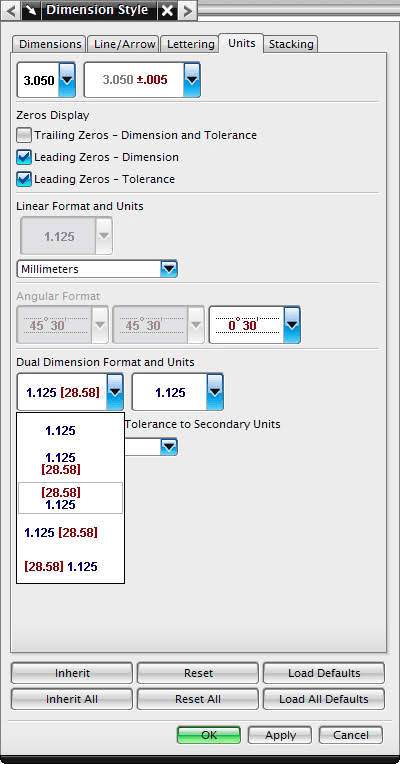

It IS already "embedded" in NX. While in drafting, select a dimension, then go to Dimension Style>Units>Dual Dimension Format and Units. See the pic:
Oct 8, 2009 #8 looslib Mechanical Jul 9, 2001 4,205 potrer, the OP is trying to do that to a note, not a dimension. "Wildfires are dangerous, hard to control, and economically catastrophic." Ben Loosli Upvote 0 Downvote
potrer, the OP is trying to do that to a note, not a dimension. "Wildfires are dangerous, hard to control, and economically catastrophic." Ben Loosli
