V5 Cumulative Snap function in 3DX Catia 1

Status
Not open for further replies.

fabianb

Aerospace
Jun 22, 2020
5
FR
All,

New member here - tried to search for this topic but couldn't find anything relevant.

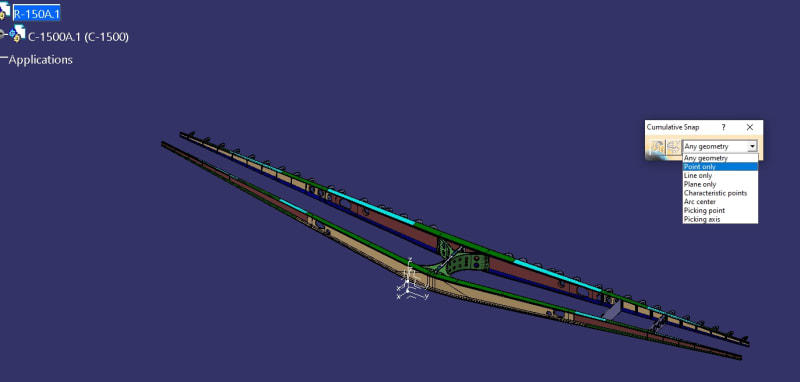

I miss the "Cumulative Snap" function in Catia for 3DX. In V5 this was a super useful tool in the DMU Navigator workbench which would allow users to quickly snap parts in assemblies using multiple constraints.

Does anybody know if such function exists in Catia for 3DX?

Thanks,

Fabian

Replies continue below

Recommended for you

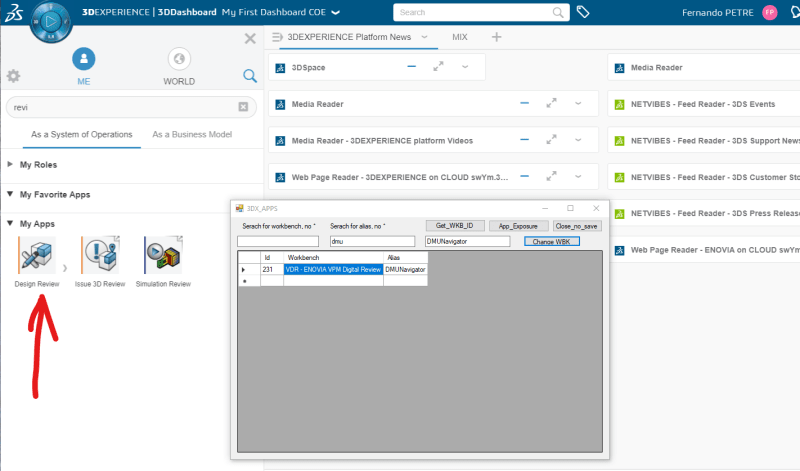

It's still in CATIA, but very well hidden [bigsmile], I had to use my app to find where is it...





2020-06-25_14_52_14-V5_Cumulative_Snap_function_in_3DX_Catia_-_DASSAULT__CATIA_products_-_Eng-Tips_rbgjx6.jpg





Regards
Fernando


Thanks a lot Ferdo!

In V5 it was possible to use functions from one workbench in another, so I was able to use the Cumulative Snap function in Assembly Design, even if it was part of the DMU Navigator workbench.

Do you know if there is something similar in 3DX?

CHeers,

Fab
