Virtual assembly view 1

[CAD2015]

Catia has a tool in assemblies that shows a virtual different view of the assembly.
It doesn't affect the structure of the real assembly; it is just a virtual representation that offer a better visualization and understanding of the assembly.

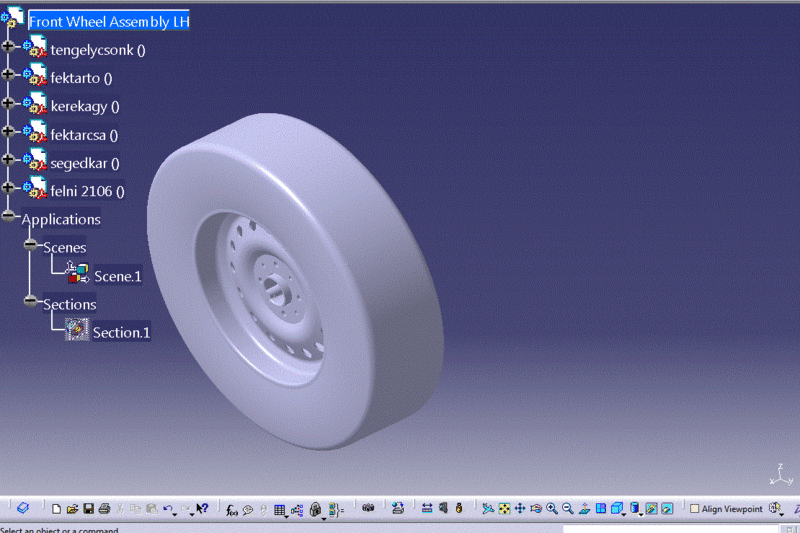

1) The real assembly structure:

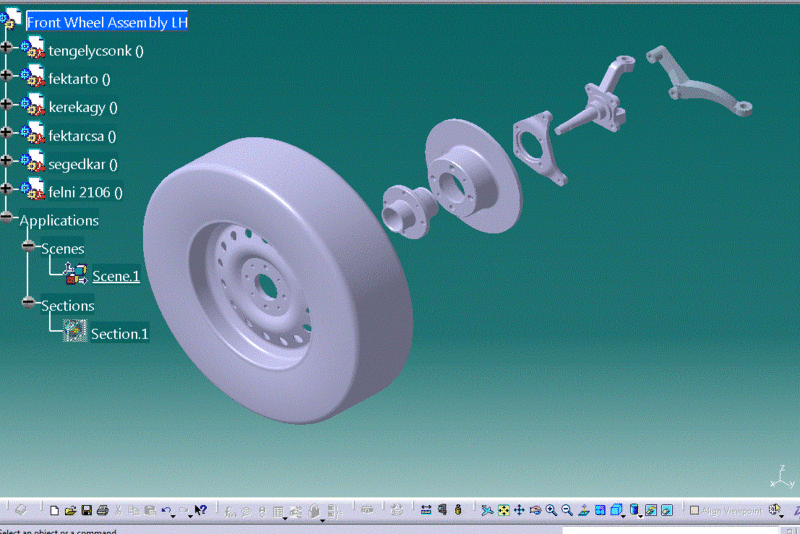

2) The virtual representation using the tool named "Scene"; the components of the assembly can be moved but they can't be modified:

I was wondering if NX has a similar capability.

Thank you.

CAD 2015



[JohnRBaker]

Yes, you can create an 'Exploded' View, which does not affect the spacial relationship between the Components in the actual Assembly.

John R. Baker, P.E. (ret)
Irvine, CA
Siemens PLM:
UG/NX Museum:

The secret of life is not finding someone to live with
It's finding someone you can't live without



[CAD2015]

Thanks a lot!


CAD 2015
