Jul 9, 2017 #1 jahanzaib islam Mechanical Jul 9, 2017 1 Whats the affect of loaded trolley on flange?

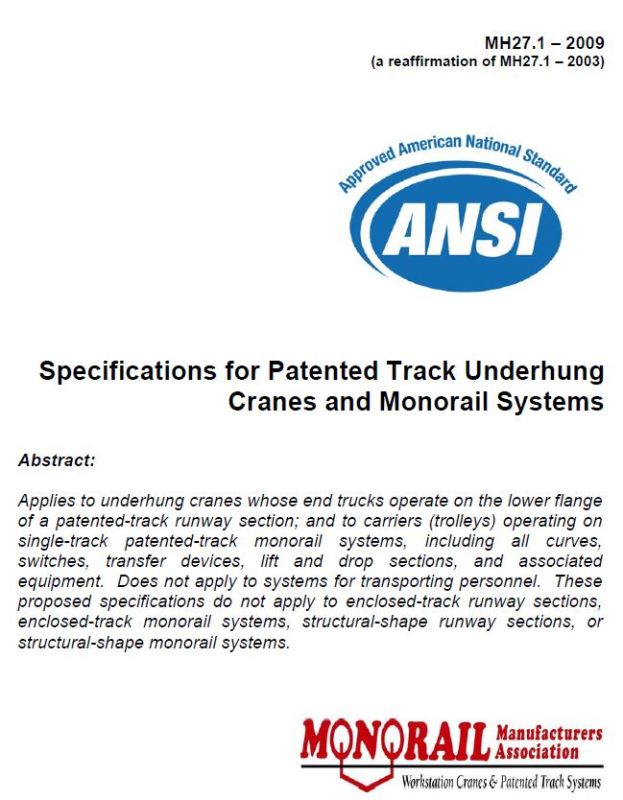

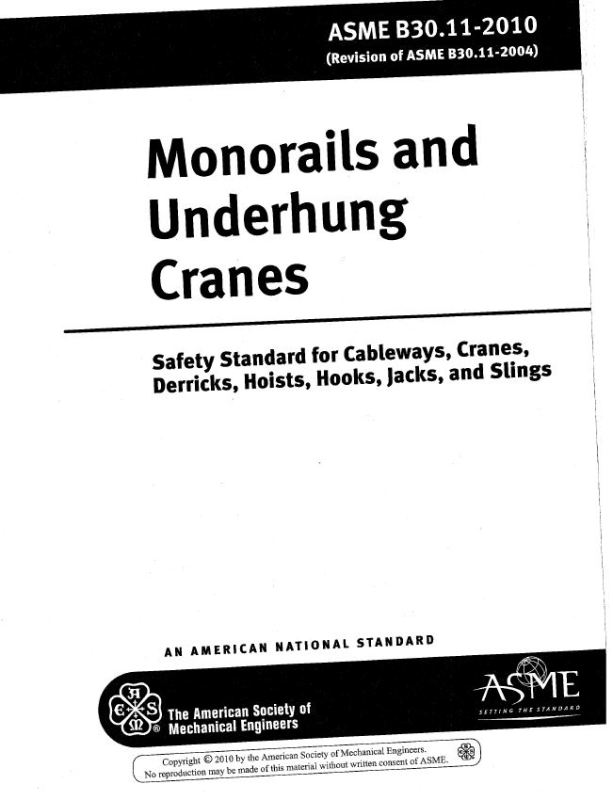

Jul 10, 2017 #3 JoelTXCive Civil/Environmental Jul 24, 2016 923 I have had to do two trolley cranes/hoists at water treatment plants. They were both 'smaller' in size. I think they were both less than 2 ton hoists. Here are two documents I found that helped with the design: 1) ANSI Specification For Patented Track Underhung Cranes & Monorail MH21.1-2009 2) ASME B30.11-2010 Monorails & Underhung Cranes I think both documents can be found on internet for free with a little searching. The ASME document has good background info, but The ANSI document was a little more useful because it actually specifies some loading rules. Calculation of an impact load Skewing of load Allowable stress in compression flange Allowable tension stress in flange Upvote 0 Downvote
I have had to do two trolley cranes/hoists at water treatment plants. They were both 'smaller' in size. I think they were both less than 2 ton hoists. Here are two documents I found that helped with the design: 1) ANSI Specification For Patented Track Underhung Cranes & Monorail MH21.1-2009 2) ASME B30.11-2010 Monorails & Underhung Cranes I think both documents can be found on internet for free with a little searching. The ASME document has good background info, but The ANSI document was a little more useful because it actually specifies some loading rules. Calculation of an impact load Skewing of load Allowable stress in compression flange Allowable tension stress in flange
