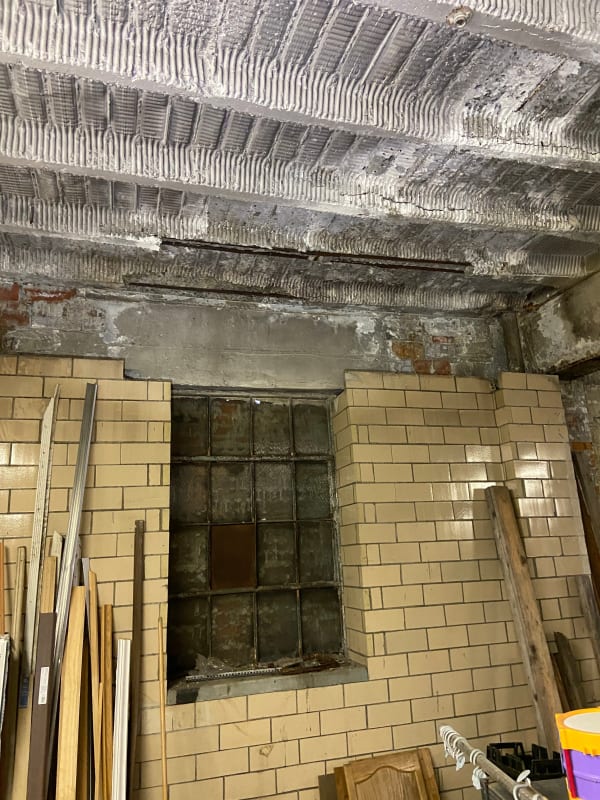

Another unique floor system 1

• Dec 6, 2020

• #2

jayrod12

Structural

Mar 8, 2011

6,175

Depending on the age. There's a company that produces it now called ComSlab



Upvote 0 Downvote

• Dec 6, 2020

• #3

r13

Civil/Environmental

Oct 26, 2019

5,988

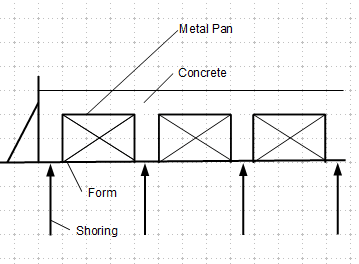

I've not directly dealt with it, but I think it is a ribbed slab system constructed using metal form. Similar to the waffle slab, this type of construction had been popular for a while, for it reduces labor cost and can be used in repeat productions. The form had changed from metal pan to fiberglass, but enthusiasm had disappeared, part of the reason been the difficulty in form removal.



Upvote 0 Downvote

• Dec 6, 2020

• #4

LittleInch

Petroleum

Mar 27, 2013

21,693

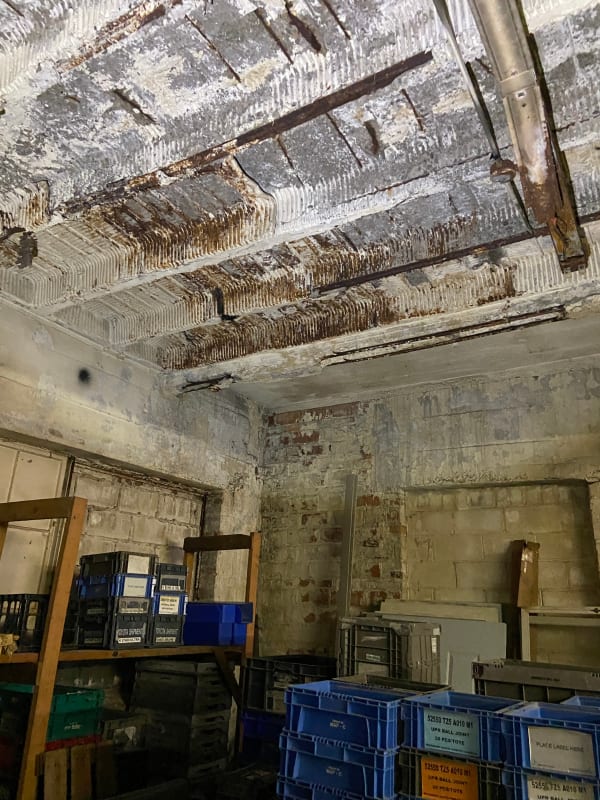

By the state of those two end beams a disaster in waiting would seem like a good description. ...

Assume the slab is cast first then the beams?

Remember - More details = better answers
Also: If you get a response it's polite to respond to it.



Upvote 0 Downvote

• Dec 6, 2020

• #5

r13

Civil/Environmental

Oct 26, 2019

5,988



Upvote 0 Downvote

• Dec 6, 2020

1
• #6

Ingenuity

Structural

May 17, 2001

2,358

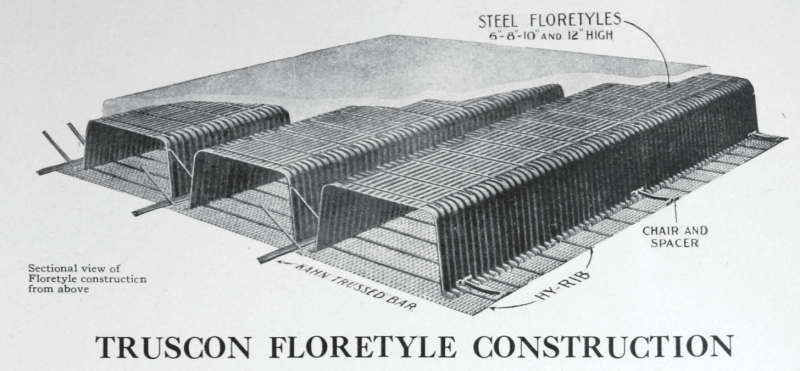

It maybe a TRUSCON FLORETYLE system.

I tried uploading a PDF file of the system from the early 1920's but it won't load - something wrong with the site. I will try again later today. You could try this link to archive.org Link for the same info.



Upvote 0 Downvote

• Dec 6, 2020

• Thread starter
• #7

JStructsteel

Structural

Aug 22, 2002

1,383

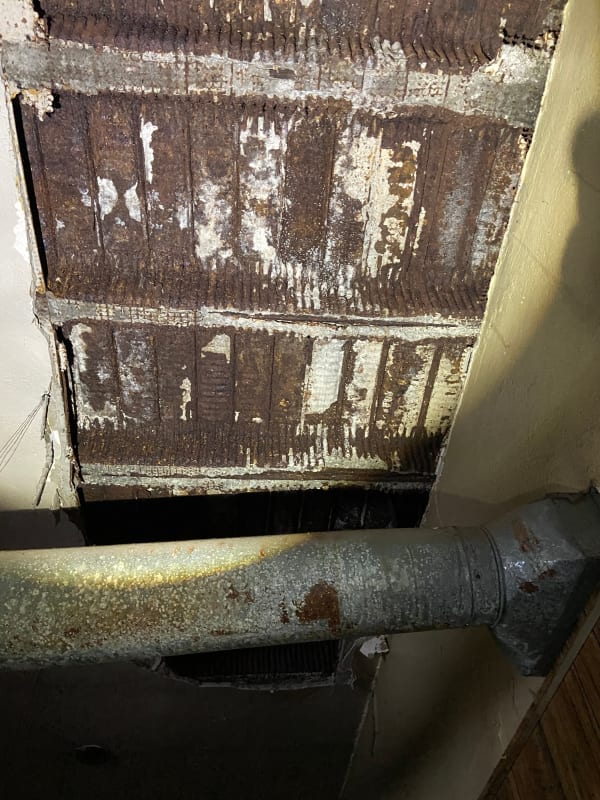

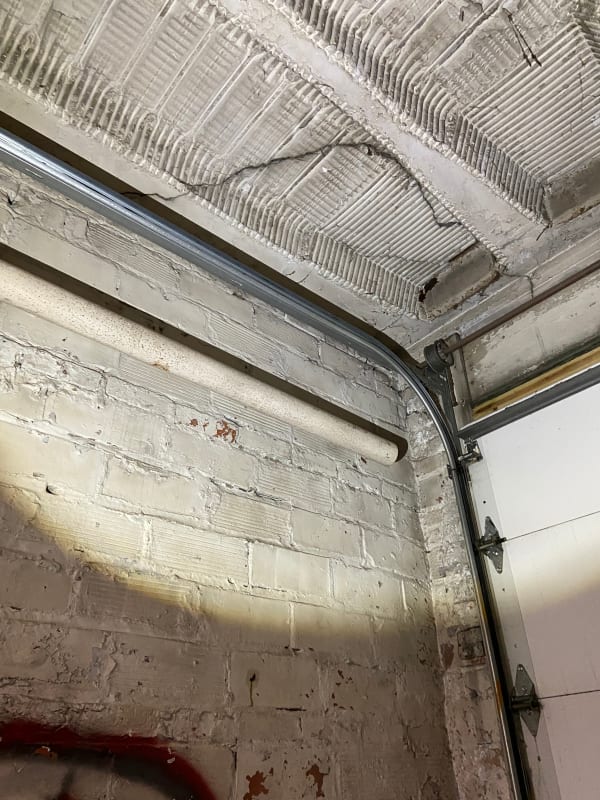

The more I look, I think I have 2 different systems to look the same. The one that is rusted, the metal forms were left in place. Another location in the structure there is a floor crack, and it goes all the way through the floor. would not expect that with a metal form system left in place. I think they took them out some point, or at the get go.



Upvote 0 Downvote

• Dec 6, 2020

• Thread starter
• #8

JStructsteel

Structural

Aug 22, 2002

1,383

Ingenuity, that would make sense, I doubt there is many other systems like that. plus the timeframe is correact. Thanks.



Upvote 0 Downvote

• Dec 6, 2020

• #9

Ingenuity

Structural

May 17, 2001

2,358

JStructsteel:

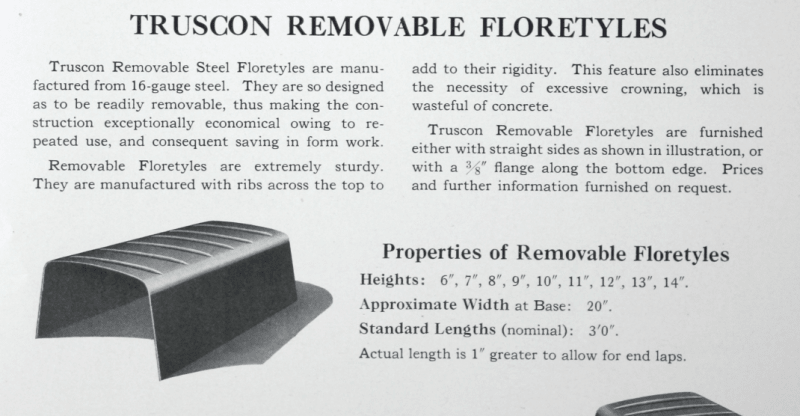

If you go the document I linked in achive.org you will see that TRUSCON had a stay-in-place and a removable form system. So maybe they used both on your project. However, the removable forms in the photo below do not have the same rib patterns are yours - therefore may not be a TRUSCON system.



Upvote 0 Downvote

• Dec 6, 2020

• #10

r13

Civil/Environmental

Oct 26, 2019

5,988

Somehow the rebars look like deformed steel, it might reveal the age of construction.



Upvote 0 Downvote

• Dec 6, 2020

• #11

phamENG

Structural

Feb 6, 2015

7,354

Or they didn't buy enough of the remain-in-place style. Since next day shipping probably wasn't an option (Amazon was still just a jungle and a river), they just used them as removable forms until they got the end, and then left them there.



Upvote 0 Downvote

• Dec 6, 2020

• #12

r13

Civil/Environmental

Oct 26, 2019

5,988

... they just used them as removable forms until they got the end, and then left them there.

Click to expand...

.... until they got the end, and then couldn't get the form off. I've heard many interesting stories on removal of this type form.
