Can anybody give suggestions for constraining the ball end (with thru hole) to the rod end?
The thru hole in the ball needs to move in the spherical path of the ball it is part of.
I am not concerned about the zinc-colored threaded part.




Jerry J.
UGV5-NX1899

Replies continue below

Recommended for you

Sort by date Sort by votes

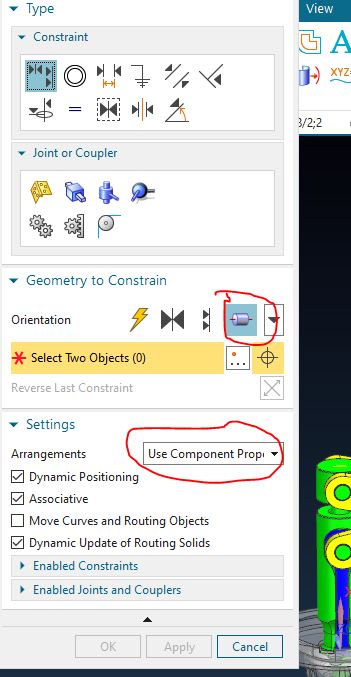

Or Align using 2 points, each at the center of the spherical faces.

Mike

Upvote 0 Downvote
Hello,

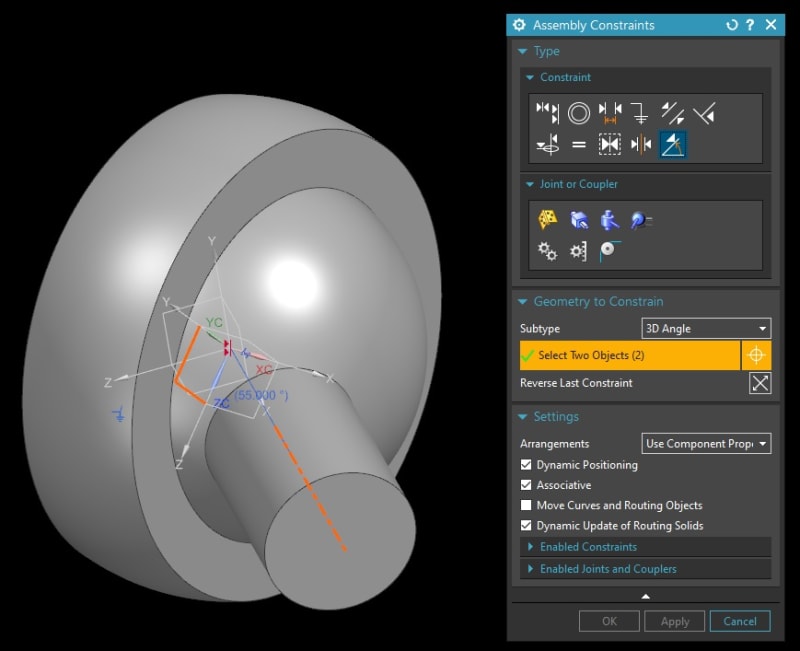

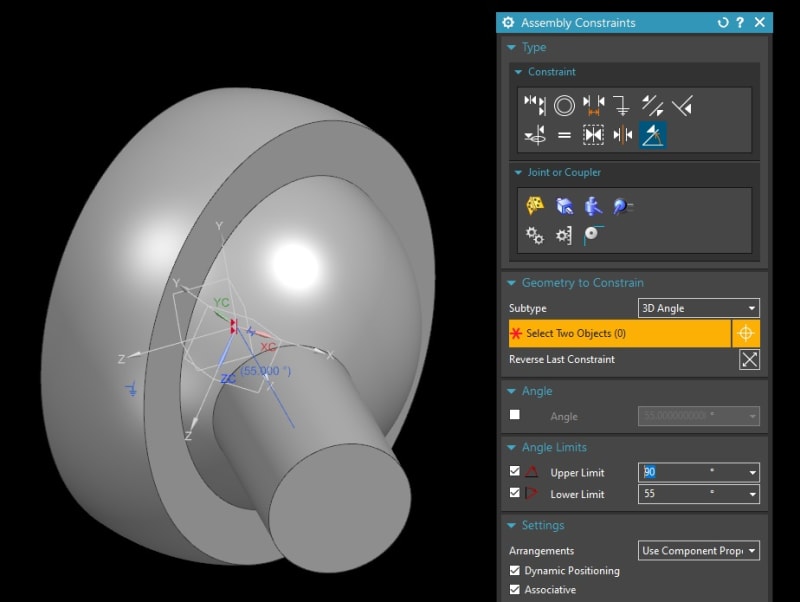

As above, with angle constraints with angle limits:



cowski method is better when You want change position of ball in outside assembly.

Best regards
MANok
NX2006
TC14

Upvote 0 Downvote
Thank you very much for all the replies. They were all extremely helpful.

Jerry J.
UGV5-NX1899

Upvote 0 Downvote
