Wireframe and Hidden Display Style - Tangent Line Display

freerangequark · Dec 14, 2023

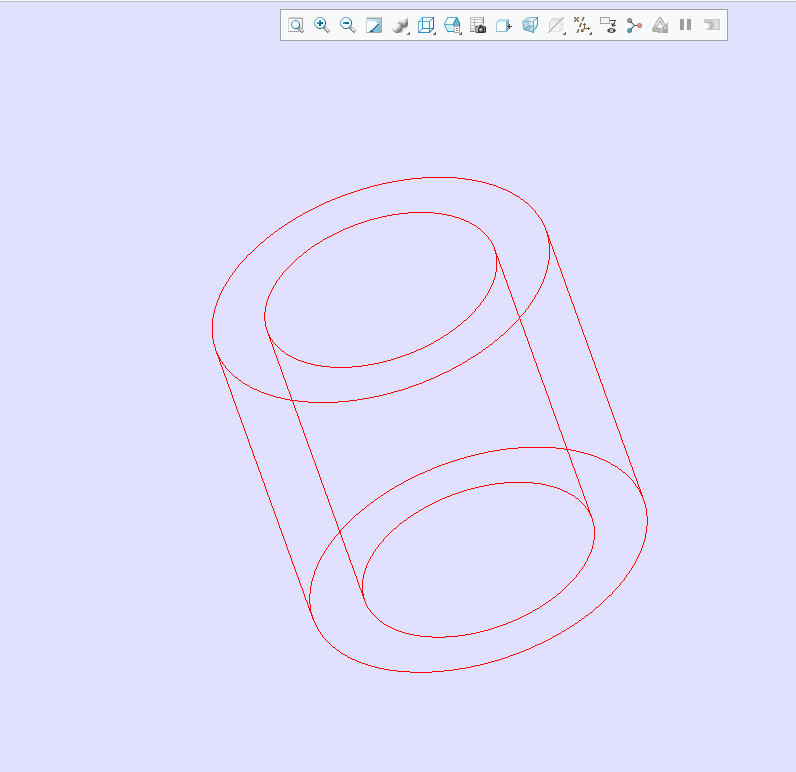

I have attached a screenshot of a simply cylinder to illustrate the problem.

I have tangent lines set to solid, yet when I view my models in wireframe or hidden, the tangent lines are invisible.

Any tips?

Thank you.

3DDave · Dec 14, 2023

You have not attached a screen shot - use the Image button.

freerangequark · Dec 22, 2023

I found the solution.

For whatever reason... the new company I am at has this configuration setting set to "NO" as default.

The team here is new to Creo so they probably didn't recognize that something was out of place having never known otherwise. Happy ending

3DDave · Dec 22, 2023

Ha - I started with Pro/E around 1991; probably hadn't thought of that option in 20 years - set and forget.
