Ain't it beautiful? 4

[itsmoked]

Ran into this today at a facility..

Ain't it beautiful?

Crazy!!

Keith Cress
kcress -

http://www.flaminsystems.com



[Shanaya]

Better to lock out that electricity than drop out of this world.



[thebard3]

Nice subject. There is more like this here, some is lots worse.

Brad Waybright

The more you know, the more you know you don't know.



[itsmoked]

OoooooOOh Brad.. Nice. Verrrry nice!

I love how the user has to dig thru a wrist sized bundle of wires to operate the breaker.

Keith Cress
kcress -

http://www.flaminsystems.com



[Sparweb]

Are you not more impressed by the 3 skinny yellow wires feeding the breaker on the left?
I, for one, am reassured by the "tag-out" safety system on the right-hand breaker bank.

http://www.sparweb.ca



[thebard3]

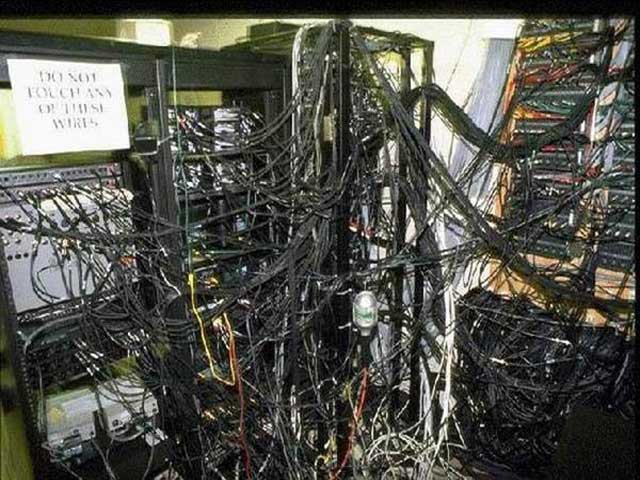

Then, of course there is this:

Brad Waybright

The more you know, the more you know you don't know.



[thebard3]

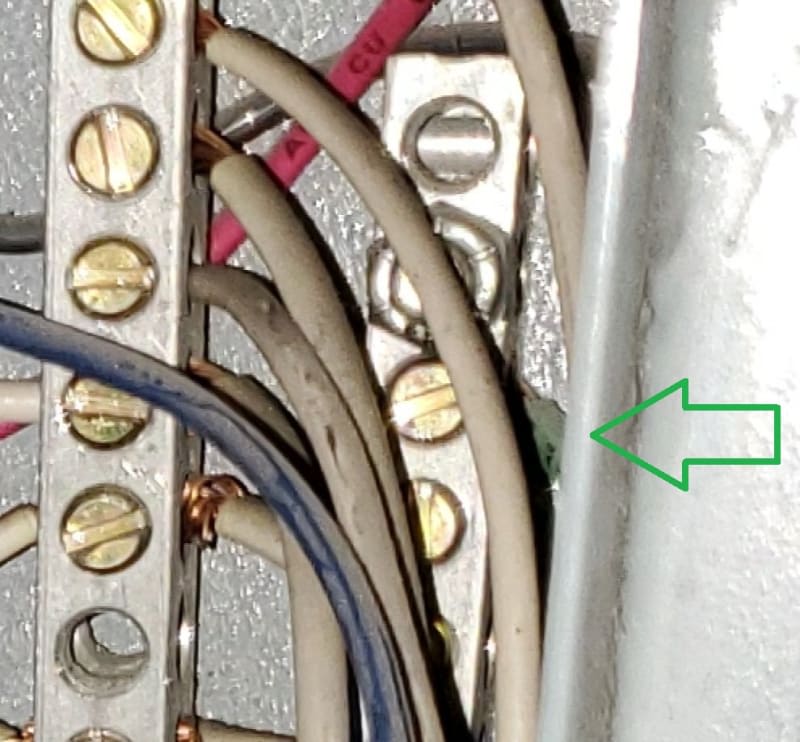

I just noticed the red and black wires run behind the neutral bus. That's exactly how I would build panels too!

Brad Waybright

The more you know, the more you know you don't know.



[itsmoked]

I just saw that tag system Spar!


I've always wanted to see the actual anchor router of the entire internet! Nice!


Oh and the red and black? Didn't notice that fine double use of the bus. The designer clearly shuns single-taskers.

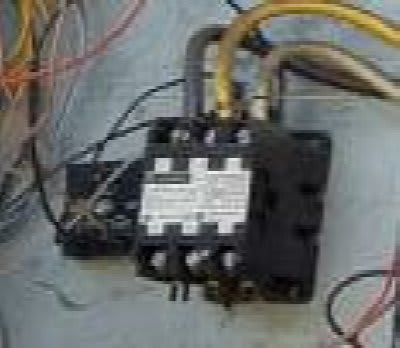

Note also the contactor life extension implementation:

Keith Cress
kcress -

http://www.flaminsystems.com



[RedSnake]

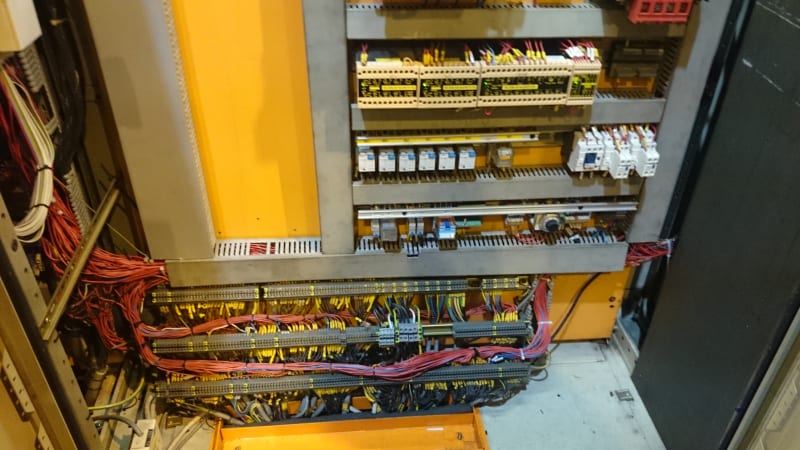

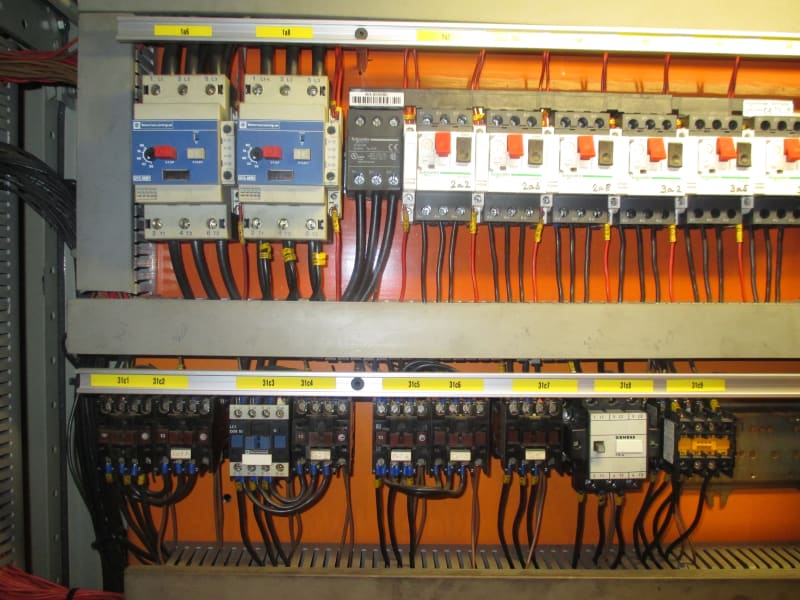

Here is something to make you happy then
Not so bad for a 38 year old still going strong.
2 PLC:s and 3 components generations later.
Aged with grace..

This is actually before the last PLC change.. so now its 3 PLC:s generations later.

Best Regards A

“Logic will get you from A to Z; imagination will get you everywhere.“
Albert Einstein



[thebard3]

I'm guessing nobody has ever opened the door to that panel in 38 years.

Brad Waybright

The more you know, the more you know you don't know.



[Sparweb]

Because nobody's been able to close the door since then, either?

http://www.sparweb.ca



[RedSnake]

It's actually more a a question of someone else than nobody.

This becomes tricky to explain.
In Swedish, someone else is någon annan.
So when they at work, takes about someone else, then they mean me.

So actually it's someone else who's been opening and closing the doors for 32 years.
Maybe that's why ... ;-)

Best Regards Anna

“Logic will get you from A to Z; imagination will get you everywhere.“
Albert Einstein



[thebard3]

I was on a service call at a paper mill years ago. System was a Modicon 484 and there was an intermittent problem. I spent lots of the day with not much going on. Of course all of the wireways were open and the wiring pulled out and hanging down, with trash, dirt and other junk in the bottom of the panel. I policed up the panel and it looked pretty good. Left for the hotel bar that evening. When I got in the next morning, I found somebody had already gotten into the panel and... well, you guessed it.

Brad Waybright

The more you know, the more you know you don't know.



[itsmoked]

No, I didn't guess it..

Keith Cress
kcress -

http://www.flaminsystems.com



[jraef]

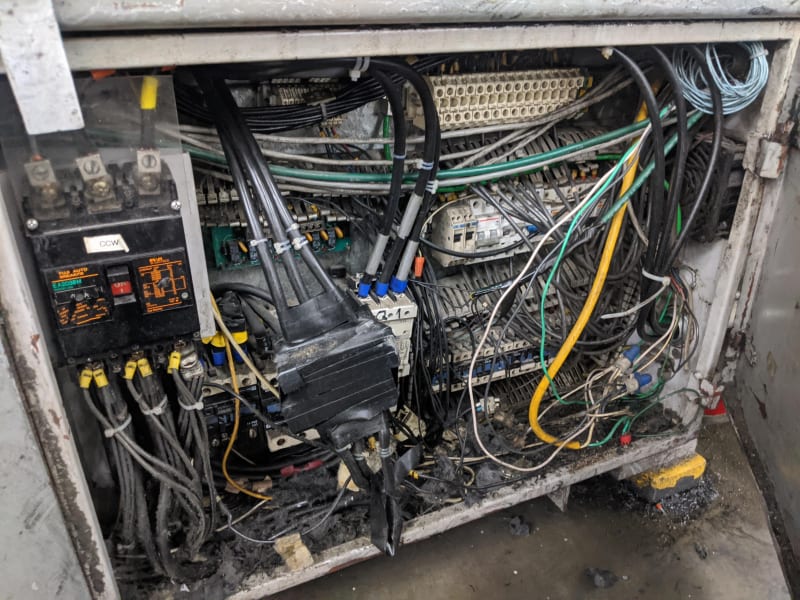

Someone just sent this one to me. I like the creative use of black electrician's tape and the de-facto Power Distribution Block made by stuffing multiple small conductors into a large crimp lug connecting to the bottom of the breaker on the left (under the added ones with the yellow crimp terminals).

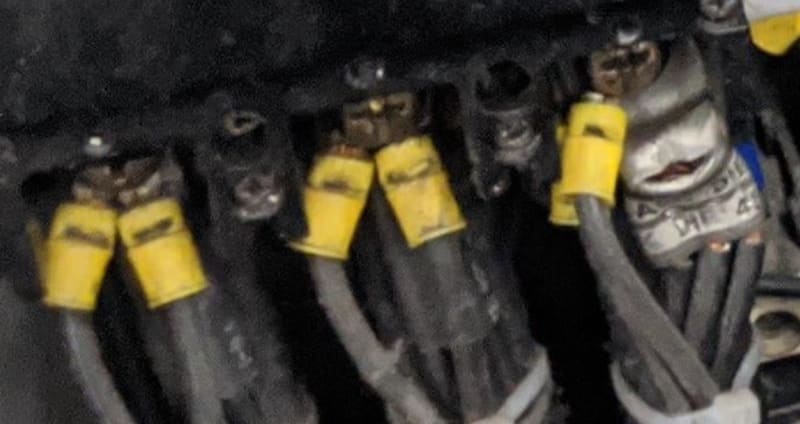

Here's a blow-up pf those terminals.

" We are all here on earth to help others; what on earth the others are here for I don't know." -- W. H. Auden



[itsmoked]

Jeez that's so hideous Jeff. Wow, just..wow. Doesn't look like they ever close the door even.

Keith Cress
kcress -

http://www.flaminsystems.com



[thebard3]

Hideous, yes.

Brad Waybright

The more you know, the more you know you don't know.
