bend inside a tab 2

[Walterke]

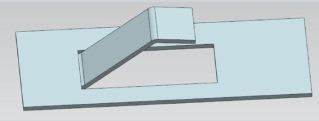

Can anyone post a description on how to make this?
I saw it in a seminar but forgot how to do it (sheet metal).

NX 7.5.5.4 with Teamcenter 8 on win7 64
Intel Xeon @3.2GHz
8GB RAM
Nvidia Quadro 2000



[SiW979]

Have a look at the model I have attached, it is exactly the same.

Hope this helps

Si

Best regards

Simon NX7.5.4.4 MP8 - TC 8 www.jcb.com



[SiW979]

Here is another version too.

Cheers

Si.

Best regards

Simon NX7.5.4.4 MP8 - TC 8 www.jcb.com



[eex23]

Here one more verson. Note, that in my version bend inside the tab using whole lenght of the tab.



[Walterke]

Thanks everyone!
