CATIA V5 100 mm grid macro for drawing views 1

[cadrat]

thread560-348895

Saw the above referenced thread that mentioned they had a start to a grid macro for CATIA V5 drafting. Is that still available? I'm looking to come up with a macro to accomplish this but don't want to start from scratch if I don't have to.



[ferdo]

Why necessary with vb when it can be done very quickly with a 2Dcomponent in a catalog?

Regards
Fernando

https://www.youtube.com/playlist?list=PL9mSHa4SOedV3dr0D3kfIWFUg7mIYm94k



[Little Cthulhu]

Hi, Fernando!

How do you propose to use 2D component (and what kind of component) to create grid?



[ferdo]

Hi Little

Glad to see you back here! A lot of peoples can learn from your answers, including me!!

I was thinking to 2D ditto

Link



Regards
Fernando

https://www.youtube.com/playlist?list=PL9mSHa4SOedV3dr0D3kfIWFUg7mIYm94k



[Little Cthulhu]

Thanks for the link.
I still don't get how you make a ditto resize and rebuild to match actual sheet size.
Do you propose to have a set of dittos for every sheet size?



[ferdo]

Yes, a set of dittos. It can be done in minutes. There are companies which are using only few sizes of sheets, not all of them.

Regards
Fernando

https://www.youtube.com/playlist?list=PL9mSHa4SOedV3dr0D3kfIWFUg7mIYm94k



[Little Cthulhu]

Thanks for the clarification, Ferdo.



[LucasC]

http://www.cadcam.co.uk

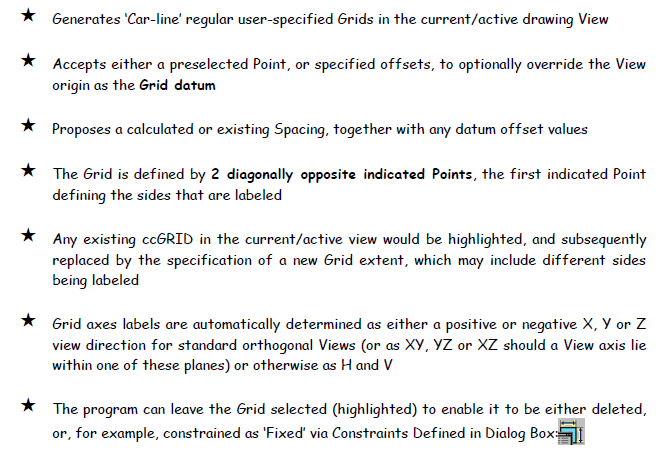

had a tool that creates body lines in relation to your 3D file absolute axis system. It looks like the site is gone now. I have attached a copy of their tool, unfortunately its encrypted but it works. edit: I don't use this for business since I can't confirm the original developers terms of use.
