Jul 6, 2015 #1 ACarrier Mechanical Mar 18, 2014 22 US What is a correct way of showing the depth of a pocket in a view that is parrallel to the surface the pocket cuts into?
What is a correct way of showing the depth of a pocket in a view that is parrallel to the surface the pocket cuts into?

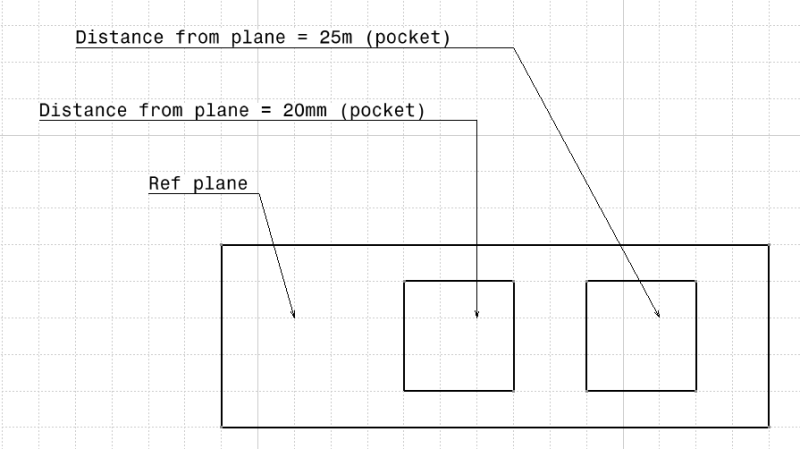

Jul 6, 2015 #2 itsmyjob Mechanical Apr 11, 2002 2,375 CA I do not know if there is any norm on that but I would defined a ref plane and put text with distance from Ref on the pocket: Eric N. indocti discant et ament meminisse periti Upvote 0 Downvote
I do not know if there is any norm on that but I would defined a ref plane and put text with distance from Ref on the pocket: Eric N. indocti discant et ament meminisse periti
