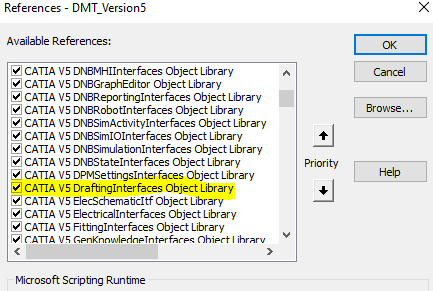

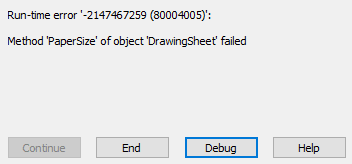

Create New Drawing Document

[Jegsaran]

Hello,
I'm trying to create a new drawing document using CATIA.Documents.Add("Drawing")

Post creation the sheet format and sizes are empty as shown.

I tried the following but it is throwing err in papersize line. Is there any other way?

Dim drawingDocument1  as DrawingDocument
Dim drawingSheets1 as DrawingSheets
Dim drawingSheet1  as DrawingSheet

Set drawingDocument1 = CATIA.Documents.Add("Drawing")
Set drawingSheets1 = drawingDocument1.Sheets
Set drawingSheet1 = drawingSheets1.Item(1)
drawingSheet1.PaperSize = catPaperA0



[LWolf]

tried your code and it works... catPaperA4 works also

regards,
LWolf



[Jegsaran]

Oh! For me it is throwing the following error



[LWolf]

check if you have that library in your references... (Tools-References)
if you use CATIA VBA-editor, right click on the paperSize line, and look at the definition:

Library DRAFTINGITF
C:\Program Files\Dassault Systemes\B28\win_b64\code\bin\DraftingTypeLib.tlb
CATIA V5 DraftingInterfaces Object Library

regards,
LWolf



[Jegsaran]

Yes I have that library
