Drawings for Retaining Walls

[BigH]

Hey all,

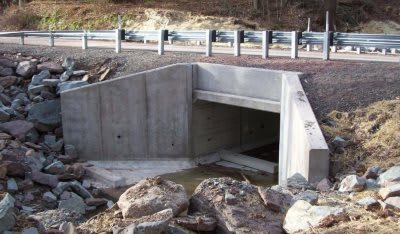

Just thought I would post a picture (below) on a counterfort retaining wing walls (2) - not the portal - and ask a simple question. How many design drawings do you think were made for these two relatively short walls? I'll wait a week before I post the answer. Would love to have your guesses!



[PEinc]

Only need one plan sheet.

http://www.PeirceEngineering.com



[r13]

One - plan view, elevation view, horizontal cut with reinforcing detail, 2 vertical cuts with reinforcing detail.



[GeoPaveTraffic]

Based on what i see now days and assuming that the project was only the wing walls so you needed a cover sheet, notes, etc.; 20 sheets is my guess.

I agree that many of sheets are needed, but it seems to take more and more sheets for even the simplest projects.

Mike Lambert



[PEinc]

Knowing how BigH likes to work in remote areas, I assumed that these already built walls are not in a highly developed country. Therefore I guessed that there were a lot less regulations to be followed when these walls were built. Therefore, I guessed only one plan sheet was used at that time for these wing walls.

http://www.PeirceEngineering.com



[oldestguy]

Too many sheets and it may well get fouled up. That's how re-bars get in the wrong face. Don't know if you had the same prof at Cornell. Came from Germany after the war. Said somehow even with those mistakes they still work. He was not George Winter, but maybe from Netherlands.



[SlideRuleEra]

Those walls look suspiciously like repurposed box culvert wingwalls. Bridge and culvert plans are noted for how much info is packed into a small number of sheets.

My guess, 1 sheet, and plans for the portal share the same sheet.

http://www.SlideRuleEra.net



[r13]

If it is a DOT job in the US, it can require two sheets. The second sheet will include reinforcing schedule and details, also enlarged details of connections.



[GeoEnvGuy]

One sheet is my guess which will have a plan and sections with rebar and dowel requirements. Notes could be referenced to another drawing for the entire project.



[BigH]

A good response! Designer is a European group working as the EPC Contractor's designer.

Ready for a good laugh? 52 DRAWINGS!! Yes, 52. Each drawing in both English and Russian!

FIFTY TWO . . .



p.s. We postulate that the designer gets paid per drawing!
