how to add a body as linked solid to another body

[NIMANIMAX72]

hi there

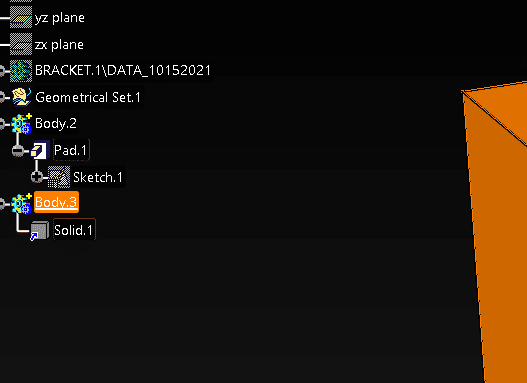

i come across a file at work that has tree like the uploaded pic.
they designed a forge part in one body and then add it to a another body as a solid
then for example add a hole to that solid
now if i change the external diameter of forge part(first body) the second body will change too
it seems very helpful for parts that machined multiple times.



[Aleks_TS]

That is called publication. Google how to make publication in Catia.
Cheers



[TiagoFigueiredo]

This is easy. Not needed publication, because it's within same part.
If it came from another part, it would have this icon:

With publication like this.

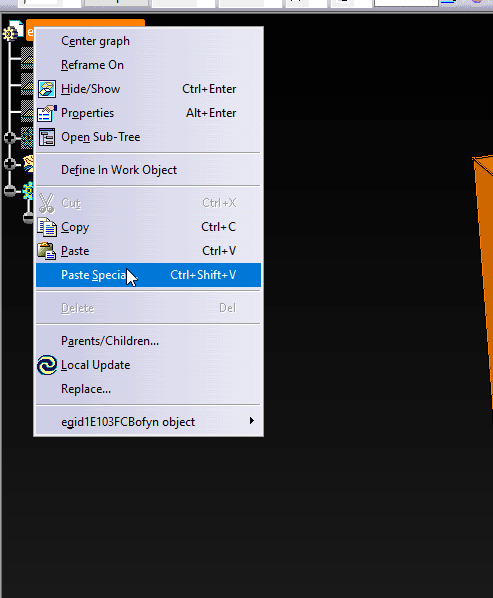

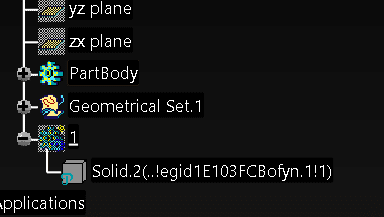

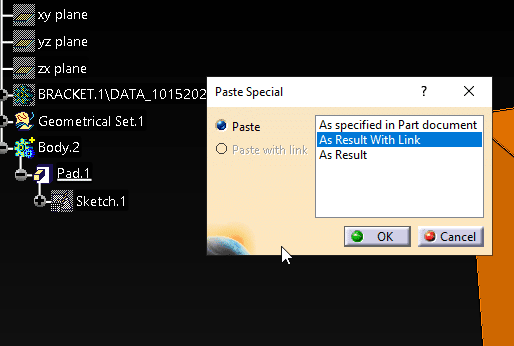

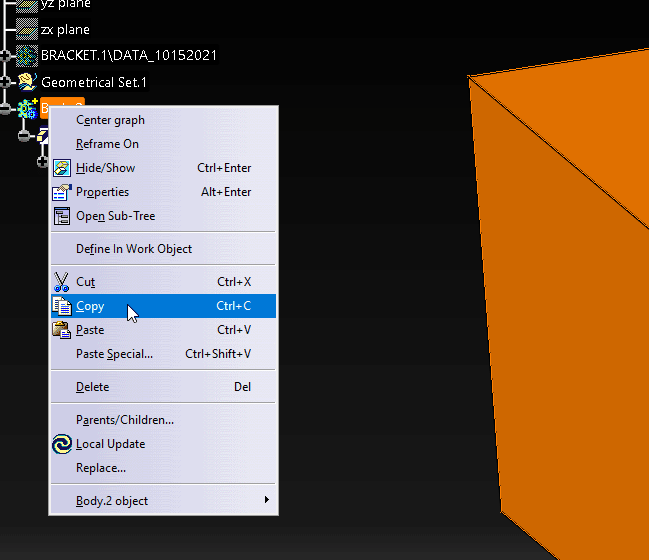

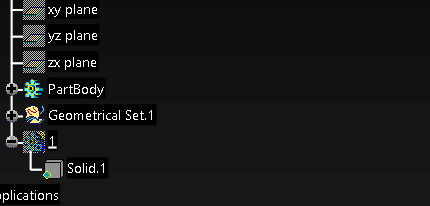

To recreate the steps made in sample, you would need something like this:

1-

2-

3-

4-

Hope it helps!


Tiago Figueiredo
Tooling Engineer

Youtube channel:

https://www.youtube.com/channel/UC1qdlBeJJEgMgpPLVJoOIOw
