Is there Feature to automatically create pads and washer?

Status
Not open for further replies.

assafwei

Materials
Jul 20, 2008
89
Hi,

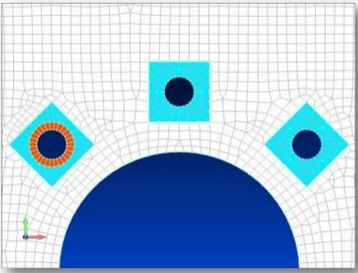

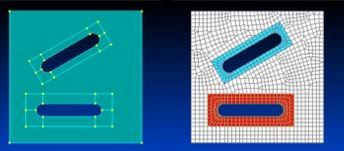

I am used from other software that there is an automatic tool that creates washers and pads (see images)



This way the mesh around holes is of good quality.
Is there an automatic tool that creates such features in ANSYS? Or do I have to do it manually?

Thanks.
