We're having a bit of trouble with how sketch constraints work.

How can we only have persistent constraints? Example when we create a rectangle by default the verticality and horizontality constraints are not persistent

Thank you and good day



[jerry1423]

When posting o here it helps to know what version of NX you are on.

Jerry J.
UGV5-NX1899



[El_Paben]

Sorry, NX2206



[jerry1423]

I was working in the new sketcher but 1.5 years ago I took a job that is still on the old sketcher,
so I cannot help you as much as I would like to but I know what you are experiencing.
Below are some videos I found on YouTube that may help you find your answer.

https://www.youtube.com/watch?v=4qjEumvwWMs&t=11s

https://www.youtube.com/watch?v=EUrgDWdMjlg

https://www.youtube.com/watch?v=IC67Gi-4irc

https://www.youtube.com/watch?v=4qjEumvwWMs

Jerry J.
UGV5-NX1899



[SDETERS]

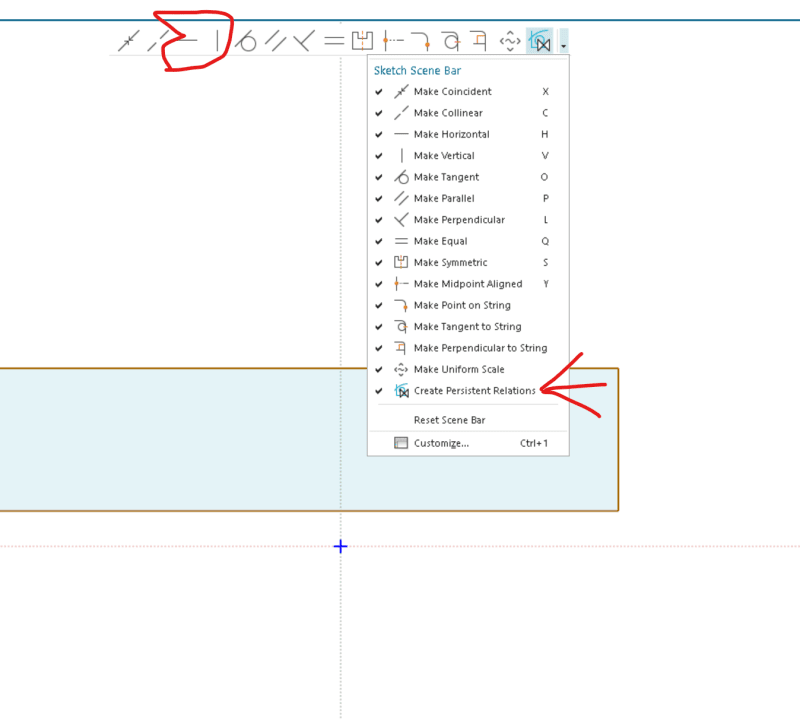

If you go to the "scene bar" at the top of your screen, there is an arrow on the right, click this arrow, at the bottom, there are "persistent constraints". Then you get the horizontal and vertical persistent constraints like you want.
