NX Journal- Get measurement result in delta X, Y, and Z 1

[nxexplorer]

Hi all,
When measuring the overall size of mold assy in nx 9.0,I have an Idea to specify 2- points diagonal of longest distance of mold assy, then it will get delta x, y and z. Restore it as attributes then shows results of delta x, delta y and deta z in writeline.

Any suggest on how to do that, is very much appreciated.
Best Regards,
Maryadi



[Ram K]

Hi,
Do you want to select those two points in graphical window (or) Do you want modify/Edit the journal each time to input the point names?



[Ram K]

Please see below C# code, it will calculate the delta X,Y and Z of 2 given points. Point names should be "PT1" and "PT2".


using System;
using NXOpen;

namespace Dist_Points
{
public class Dist_Chk
{
public static void Main(string[] args)
{
Session theSession = Session.GetSession();
UI theUi = UI.GetUI();
Part workPart = theSession.Parts.Work;
ListingWindow lw = theSession.ListingWindow;
String pnt1_name = "PT1";//Rename this to point 1
String pnt2_name = "PT2";//rename this to Point 2
Double[] ord = new Double[6];
bool pnt1s = false;
bool pnt2s = false;


try
{
PointCollection pts = workPart.Points;


lw.Open();

foreach (Point p in pts)
{
if (p.Name == pnt1_name)
{

ord[0] = p.Coordinates.X;
ord[1] = p.Coordinates.Y;
ord[2] = p.Coordinates.Z;
pnt1s = true;
}
else if(p.Name == pnt2_name)
{

ord[3] = p.Coordinates.X;
ord[4] = p.Coordinates.Y;
ord[5] = p.Coordinates.Z;
pnt2s = true;
}

}

if (pnt1s != true || pnt2s != true)
{
theUi.NXMessageBox.Show("Point Distance tool", NXMessageBox.DialogType.Information, "Points names are not correct");
}

lw.WriteFullline("Distance in X: "+(ord[0]- ord[3]).ToString());
lw.WriteFullline("Distance in Y: " + (ord[1] - ord[4]).ToString());
lw.WriteFullline("Distance in Z: " + (ord[2] - ord[5]).ToString());



}
catch (Exception ex)
{
theUi.NXMessageBox.Show("Point tool", NXMessageBox.DialogType.Error, ex.ToString());
}


}
public static int GetUnloadOption(string dummy) { return (int)NXOpen.Session.LibraryUnloadOption.Immediately; }
}
}



[nxexplorer]

Hi Ram K
Thank you for the journal. Its what I need,I have renamed both two points with PT1 and PT2 but still fail, seems like the points names are not identified." Points names are not correct"

Regards,
Maryadi



[Ram K]

Hi Maryadi,

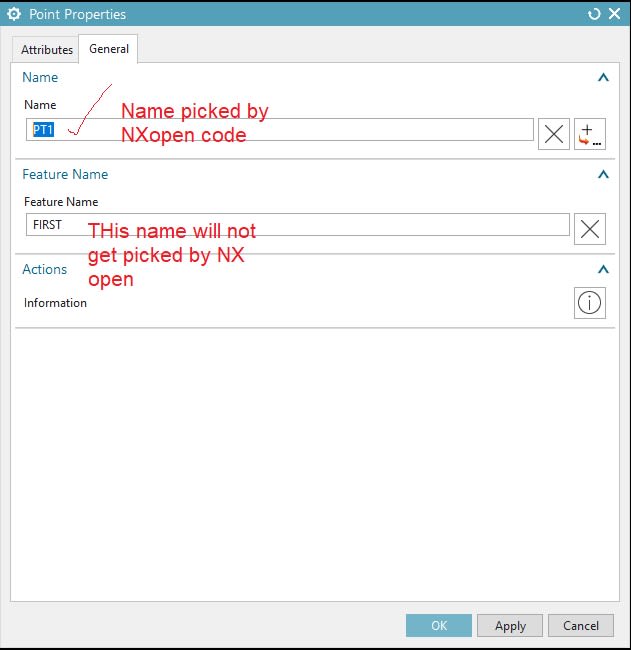

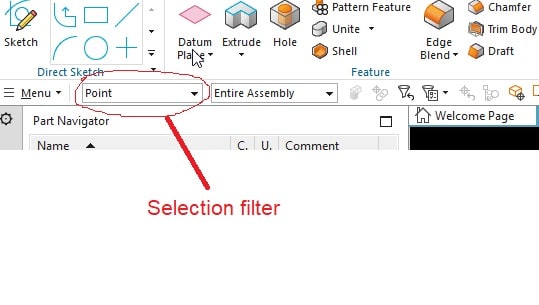

When renaming , Please set the selection filter to Point and select the points. In your case point features are renamed instead of point object.
Attached image is for reference.



[nxexplorer]

Hi Ram K
Ok, let me give it a try, one more.
Regards,
Maryadi



[nxexplorer]

Hi Ram K,
Yes, Perfect. It's work.
Thank you.
Regards,
Maryadi



[nxexplorer]

Here is modified journal from above codes, maybe someone needs it in future.
First point to be given a name "1"
Second point to be given a name "2"


Now, I have an Idea to select both two points without doing manual naming, which is mean it will auto-naming to "1" and "2",. Any help is very much appreciated.
//***********************************************************************************
using NXOpen;
using System;


namespace Dist_Points
{
public class Dist_Chk
{
public static void Main(string[] args)
{
Session theSession = Session.GetSession();
UI theUi = UI.GetUI();
Part workPart = theSession.Parts.Work;
ListingWindow lw = theSession.ListingWindow;
String pnt1_name = "1";//Rename this to point 1
String pnt2_name = "2";//rename this to Point 2
Double[] ord = new Double[6];
bool pnt1s = false;
bool pnt2s = false;

try
{
PointCollection pts = workPart.Points;
lw.Open();

foreach (Point p in pts)
{
if (p.Name == pnt1_name)
{

ord[0] = p.Coordinates.X;
ord[1] = p.Coordinates.Y;
ord[2] = p.Coordinates.Z;
pnt1s = true;
}
else if(p.Name == pnt2_name)
{

ord[3] = p.Coordinates.X;
ord[4] = p.Coordinates.Y;
ord[5] = p.Coordinates.Z;
pnt2s = true;
}

}

if (pnt1s != true || pnt2s != true)
{
theUi.NXMessageBox.Show("Point Distance tool", NXMessageBox.DialogType.Information, "Points names are not correct");
}

double DeltaX = (Math.Abs(ord[0]- ord[3]));
double DeltaY = (Math.Abs(ord[1]- ord[4]));
double DeltaZ = (Math.Abs(ord[2]- ord[5]));

string DX=DeltaX.ToString("n2");
string DY=DeltaY.ToString("n2");
string DZ=DeltaZ.ToString("n2");

string titleStr = "MOLDSIZE";
string msize = DX+" x "+DY+" x "+DZ;
workPart.SetUserAttribute( titleStr,-1, msize, Update.Option.Now );

lw.WriteFullline( titleStr +": " +msize);

}
catch (Exception ex)
{
theUi.NXMessageBox.Show("Point tool", NXMessageBox.DialogType.Error, ex.ToString());
}


}
public static int GetUnloadOption(string dummy) { return (int)NXOpen.Session.LibraryUnloadOption.Immediately; }
}
}

//*************************************

Regards,
Maryadi
