Hi,

It may look childlike, but I'm still asking this question:

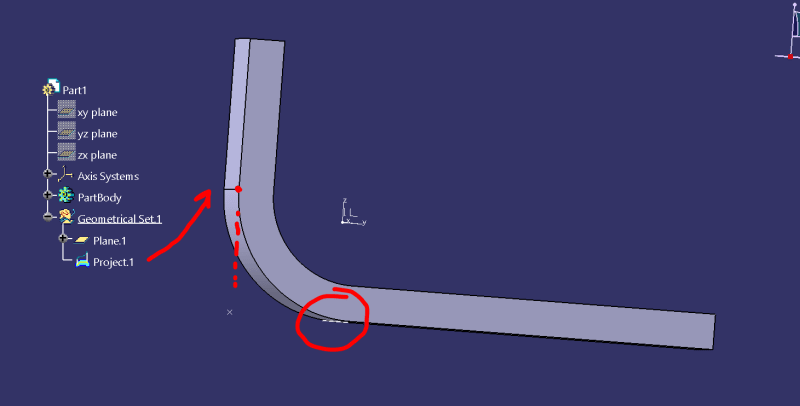

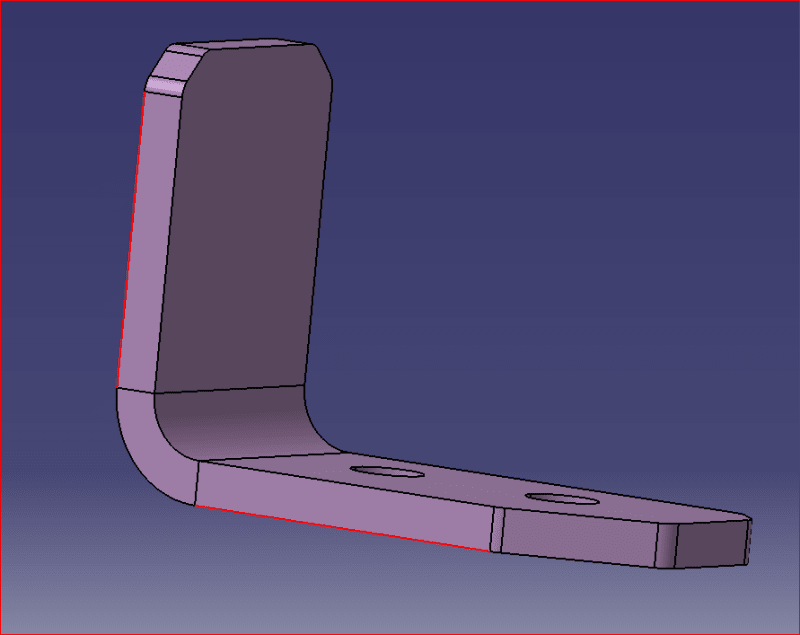

How could I create a point at the intersection of the two edges (highlighted in the picture)?



I haven't found this option under point creation, either in Part Design and GSD.........

CAD 2015

Replies continue below

Recommended for you

Sort by date Sort by votes
Any other opinion/options?........
[bigsmile]

CAD 2015

Upvote 0 Downvote

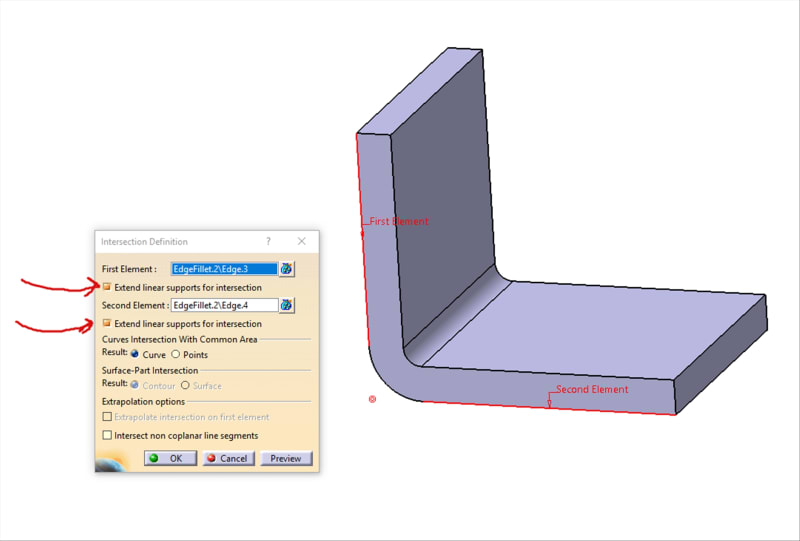

try using intersection with Extend option selected.

Upvote 0 Downvote
RickyT:
Your option is perfect!
Fast and efficient!
Thanks a lot!


CAD 2015

Upvote 0 Downvote
Status
Not open for further replies.
