Hello,
The images on my MathCAD sheet get blurred when I convert it to a pdf document using the print option. Software used is PDFCreator 2.0. Is there a way to improve the quality?
Regards,
Su



[dik]

I use Doropdf for nearly all my printing... It's free and installs like a printer driver. Instead of printing to my HP or Samsung printer, I select Doropdf as my printer and it prints out a *.pdf file... it's pretty slick.

Dik



[IRstuff]

Maybe you can post the worksheet and the example output?

TTFN (ta ta for now)
I can do absolutely anything. I'm an expert!

https://www.youtube.com/watch?v=BKorP55Aqvg

faq731-376 forum1529 Entire Forum list

http://www.eng-tips.com/forumlist.cfm



[dik]

From SMath Studio and DoroPDF Writer...



[IRstuff]

I was looking to the OP to show an example of their supposed bad print output

TTFN (ta ta for now)
I can do absolutely anything. I'm an expert!

https://www.youtube.com/watch?v=BKorP55Aqvg

faq731-376 forum1529 Entire Forum list

http://www.eng-tips.com/forumlist.cfm



[dik]

knew that... was showing him an example of what a *pdf printer can produce.

Dik



[IRstuff]

knew that... hoping to get a response from the OP

TTFN (ta ta for now)
I can do absolutely anything. I'm an expert!

https://www.youtube.com/watch?v=BKorP55Aqvg

faq731-376 forum1529 Entire Forum list

http://www.eng-tips.com/forumlist.cfm



[SuG89]

Hello everyone,
Thanks for your responses and apologies for my very late answer.
Attached you will find an example image comparison.
Regards,
Su



[SuG89]

I just tried Doropdf and the images look better compared to PDF Creater
Are there some settings in Doropdf which can further improve the image quality? I tried increasing the dpi from 600 to 1200 but that didn't help.
Regards,
Su



[dik]

SuG89:
Not that I'm aware of... I use it as my default printer and have never had an issue with clarity. If I need a hard copy... usually a *.pdf is adequate. Have used the printer for 5 or 10 years with nary a glitch. Shows up in my list of printers... and is set to default. The ability to over write or to append is extremely useful.
Dik



[IRstuff]

Can you upload the actual Mathcad file?

I've printed both "Microsoft print to PDF" and Acrobat, and I don't see the image compression artifacts that show up in your images.

TTFN (ta ta for now)
I can do absolutely anything. I'm an expert!

https://www.youtube.com/watch?v=BKorP55Aqvg

faq731-376 forum1529 Entire Forum list

http://www.eng-tips.com/forumlist.cfm



[IRstuff]

Don't know about PDFCreator, but Acrobat has a bunch of options available for PDF quality. Since the OP didn't provide the original Mathcad file, I cut out the Snippet example, pasted that into Mathcad, and printed with all compression turned off. The results are essentially like the Snippet example. BUT, the file size can be substantially larger than the compression artifacted one.

TTFN (ta ta for now)
I can do absolutely anything. I'm an expert!

https://www.youtube.com/watch?v=BKorP55Aqvg

faq731-376 forum1529 Entire Forum list

http://www.eng-tips.com/forumlist.cfm



[SuG89]

@dik,@IRstuff:
Thanks again for your responses. Apologies for not uploading the original MathCAD file. I'll be violating the company policy if I do that and don't want to take any chances.

@IRstuff:
"I cut out the Snippet example, pasted that into Mathcad, and printed with all compression turned off."
Could you please share what settings did you change to turn the compression off?

Regards,
Su



[IRstuff]

I can't remember exactly what I did, but this should work
> Print to Adobe PDF
> Click the Properties box for Adobe PDF when it shows up:

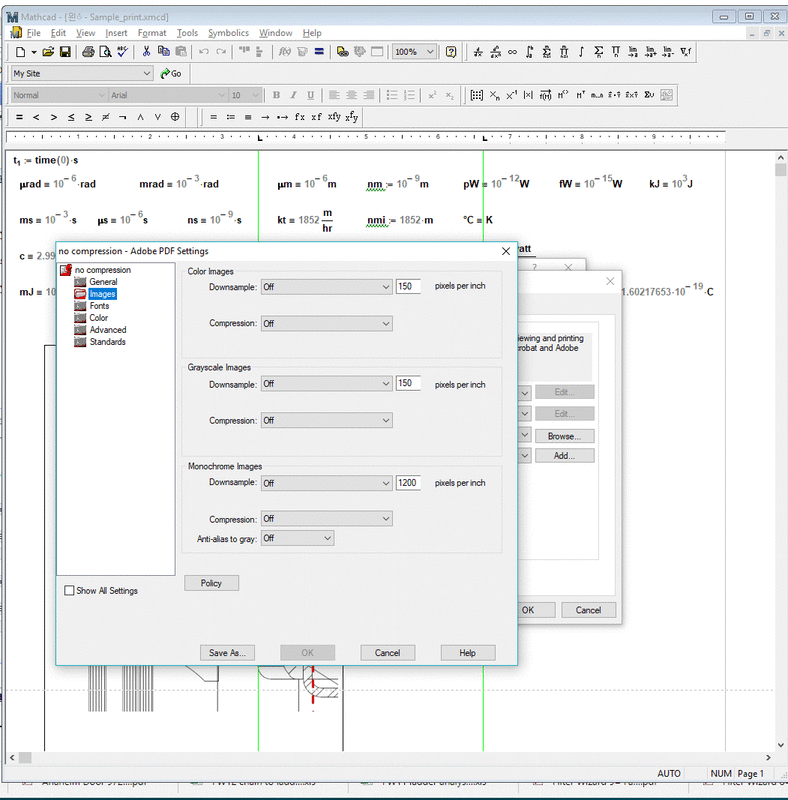

> Edit the Default Settings and click on Images:
