Sweep Meshing - simple but hard to achieve

[Vitkacy1989]

Hi All,

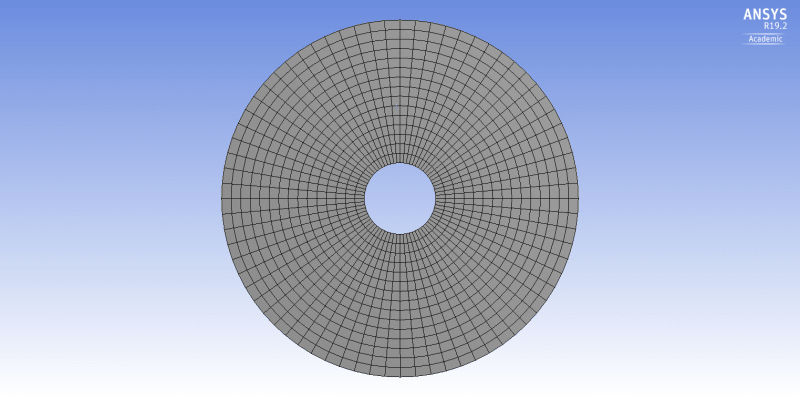

Please see picture at the bottom. I have two queries regarding sweep meshing for a nice cylindrical part:

A. How to force orange body to have a nice radial-form mesh?
B. How to force green body to sweep along length without rotation (you may see that mesh is slightly rotated)?



[scheah]

You could try mesh decomposition. For your problem, perhaps have 4 quarters of the rod and 4 quarters of the orange body. You could then put hard size controls to force the sizing that you want. An approximate example can be found here.


Kind regards,
Jason



[Davide Recchia]

Try Face Meshing, under Mesh Control. It worked pretty well for me.



[ikerg]

A) If you define a edge size for the outermost radius you can obtain a more dense mesh
