ufs.Modl.AskBoundingBoxExact give min_corner that not the closest to the ABS Csys

[Ehaviv]

Hi

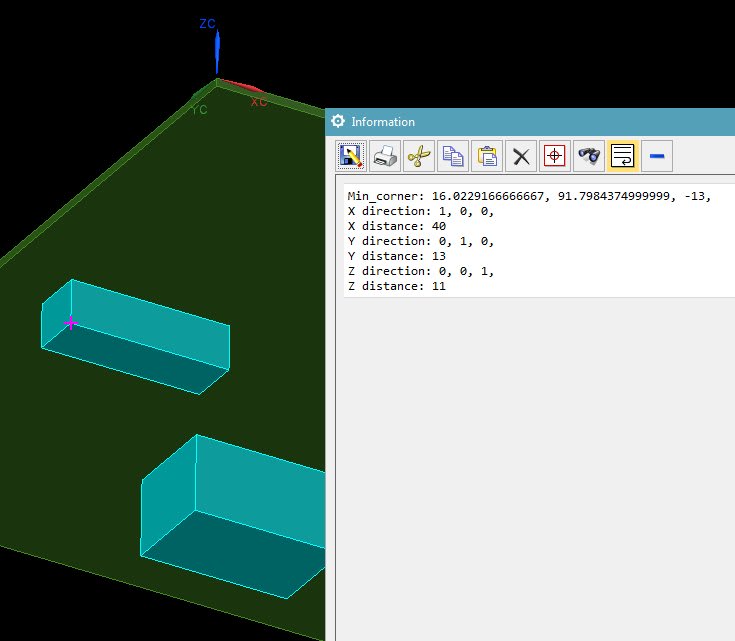

As the picture show the
min_corner that not the closest to the ABS Csys.

Or I don't understand the therm minimum corner ?

Thanks.

I used this journal for this minimum corner.

Option Strict Off

Imports System

Imports NXOpen
Imports NXOpen.UI
Imports NXOpen.Utilities
Imports NXOpen.UF

Module make_bounding_block_of_selected_body_relative_to_wcs

    Dim s As Session = Session.GetSession()
    Dim ufs As UFSession = UFSession.GetUFSession()
    Dim lw As ListingWindow = s.ListingWindow()

    Sub Main()

        Dim a_body As NXOpen.Tag = NXOpen.Tag.Null
        Dim csys As NXOpen.Tag = NXOpen.Tag.Null
        Dim target As NXOpen.Tag = NXOpen.Tag.Null
        Dim blockFeature As NXOpen.Tag = NXOpen.Tag.Null

        Dim min_corner(2) As Double
        Dim directions(2, 2) As Double
        Dim distances(2) As Double
        Dim edge_len(2) As String

        While select_a_body(a_body) = Selection.Response.Ok

            ufs.Csys.AskWcs(csys)

            ufs.Modl.AskBoundingBoxExact(a_body, csys, min_corner, directions, _
                distances)

            lw.Open()

            lw.WriteLine("Min_corner: " & _
                min_corner(0).ToString & ", " & _
                min_corner(1).ToString & ", " & _
                min_corner(2).ToString & ", ")

            lw.WriteLine("X direction: " & _
                directions(0, 0).ToString & ", " & _
                directions(0, 1).ToString & ", " & _
                directions(0, 2).ToString & ", ")
            lw.WriteLine("X distance: " & _
                distances(0).ToString)

            lw.WriteLine("Y direction: " & _
                directions(1, 0).ToString & ", " & _
                directions(1, 1).ToString & ", " & _
                directions(1, 2).ToString & ", ")
            lw.WriteLine("Y distance: " & _
                distances(1).ToString)

            lw.WriteLine("Z direction: " & _
                directions(2, 0).ToString & ", " & _
                directions(2, 1).ToString & ", " & _
                directions(2, 2).ToString & ", ")
            lw.WriteLine("Z distance: " & _
                distances(2).ToString)

            edge_len(0) = distances(0).ToString()
            edge_len(1) = distances(1).ToString()
            edge_len(2) = distances(2).ToString()

            'ufs.Modl.CreateBlock(FeatureSigns.Nullsign, _
                                 'target, min_corner, edge_len, blockFeature)
        End While

    End Sub

    Function select_a_body(ByRef a_body As NXOpen.Tag) As Selection.Response

        Dim message As String = "Select a body"
        Dim title As String = "Select a body"
        Dim scope As Integer = UFConstants.UF_UI_SEL_SCOPE_ANY_IN_ASSEMBLY
        Dim response As Integer

        Dim view As NXOpen.Tag
        Dim cursor(2) As Double
        Dim ip As UFUi.SelInitFnT = AddressOf body_init_proc

        ufs.Ui.LockUgAccess(UFConstants.UF_UI_FROM_CUSTOM)

        Try
            ufs.Ui.SelectWithSingleDialog(message, title, scope, ip, _
                         Nothing, response, a_body, cursor, view)
        Finally
            ufs.Ui.UnlockUgAccess(UFConstants.UF_UI_FROM_CUSTOM)
        End Try

        If response <> UFConstants.UF_UI_OBJECT_SELECTED And _
           response <> UFConstants.UF_UI_OBJECT_SELECTED_BY_NAME Then
            Return Selection.Response.Cancel
        Else
            ufs.Disp.SetHighlight(a_body, 0)
            Return Selection.Response.Ok
        End If

    End Function

    Function body_init_proc(ByVal select_ As IntPtr, _
                           ByVal userdata As IntPtr) As Integer

        Dim num_triples As Integer = 1
        Dim mask_triples(0) As UFUi.Mask
        mask_triples(0).object_type = UFConstants.UF_solid_type
        mask_triples(0).object_subtype = UFConstants.UF_solid_body_subtype
        mask_triples(0).solid_type = UFConstants.UF_UI_SEL_FEATURE_BODY

        ufs.Ui.SetSelMask(select_, _
                           UFUi.SelMaskAction.SelMaskClearAndEnableSpecific, _
                           num_triples, mask_triples)
        Return UFConstants.UF_UI_SEL_SUCCESS

    End Function

    Public Function GetUnloadOption(ByVal dummy As String) As Integer

        GetUnloadOption = UFConstants.UF_UNLOAD_IMMEDIATELY

    End Function

End Module



[Ehaviv]

Hi Cowski and thank you.

My question is why in the peace part
always I get the magenta point
on the middle of the top face of the
block that I select for bbox.
but in the assembly part its not.
note that the selected block is an occurrence as required by the bbox function.



[Ehaviv]

Clarification.

My target is that the wrapped block
to be the same as the block I select.

Briefly I need a point on the middle
of the face of the original block.



[Ehaviv]

Actually I don't need the wrapped block
to be created only the magenta point
to be created.



[Ehaviv]

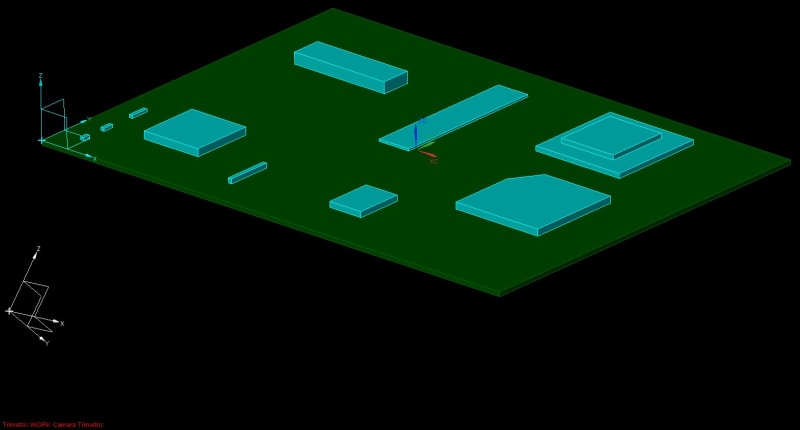

I forgot to say that befor runing the journal I set the WCS as
