Variable Fillets

[rickyt]

I am getting 2 different results on 2 different computers, both at V5R26.

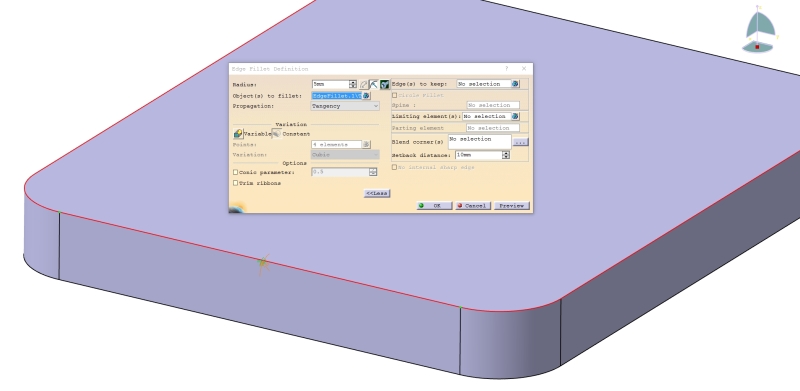

When I generate a variable EdgeFillet.3, and then go to modify it, all the radii values lay on top of each other.
The tree shows only one value, and the points are de-highlighted in the window.

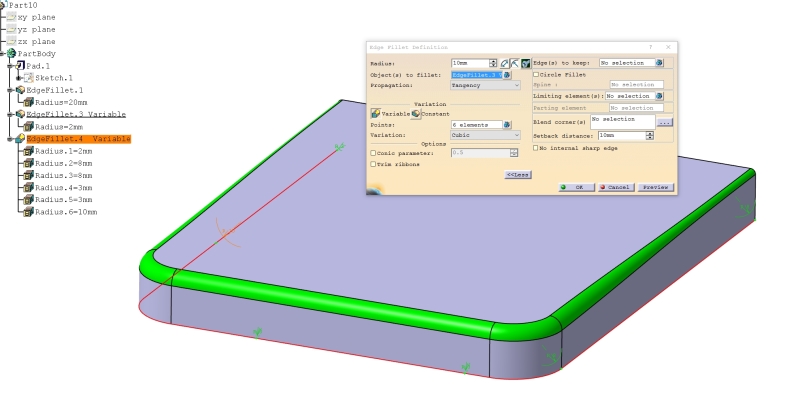

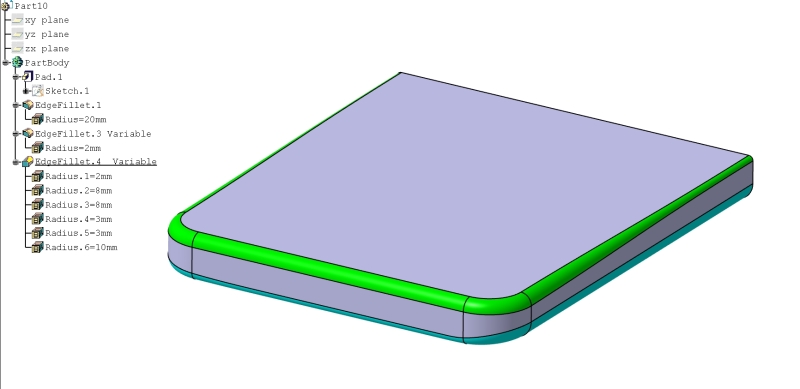

When someone else creates the EdgeFillet.4 I get what I would expect and seen in the past.

Has anyone seen this happen??

Thanks,
Rick



[TiagoFigueiredo]

Has the value of some radius enough to intersect with the other radius? Try to increase the plate thickness and see the behavior

Tiago Figueiredo
Tooling Engineer

Youtube channel:

https://www.youtube.com/channel/UC1qdlBeJJEgMgpPLVJoOIOw



[rickyt]

I cleared my catsettings and now it works as it should.

Thanks!
