Embed Plate Design 1

oengineer · Jun 14, 2019

I am working on designing some embed plates for steel beams attaching to ICF walls using Hilti PROFIS software. I am new to the use and design of embed plates. I was wondering if anyone is aware of any literature pertaining to Embed Plate design.

Suggestions/ Comments are appreciated.

struct_eeyore · Jun 14, 2019

PCI design handbook has a pretty good section on embed plate design - other than that, I have not run into much literature. Been on the lookout for some graphs or tables, so if you come up with anything, please post it here.

KootK · Jun 14, 2019

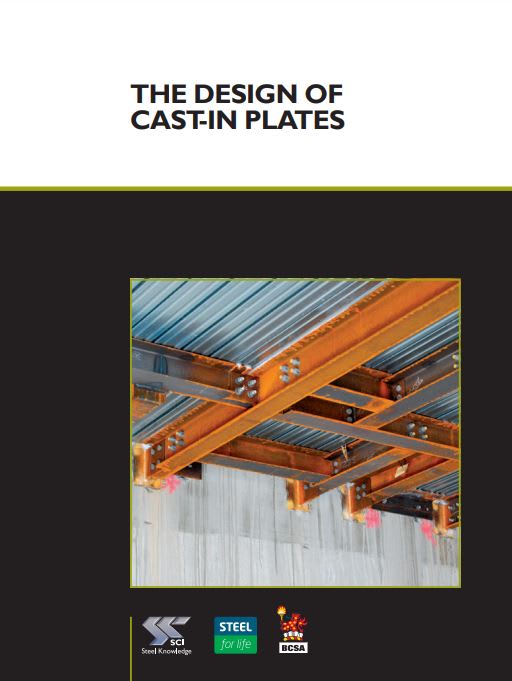

This is relatively new and utterly excellent in my opinion, even if it is geared towards a European market (I'm in North America): Link

I also made some extensive recommendations in this thread depending on how deep of a dive you're looking for: Link

TehMightyEngineer · Jun 15, 2019

Nice one KootK; that's new to me as well.

Ian Riley, PE, SE
Professional Engineer (ME, NH, VT, CT, MA, FL) Structural Engineer (IL, HI)
