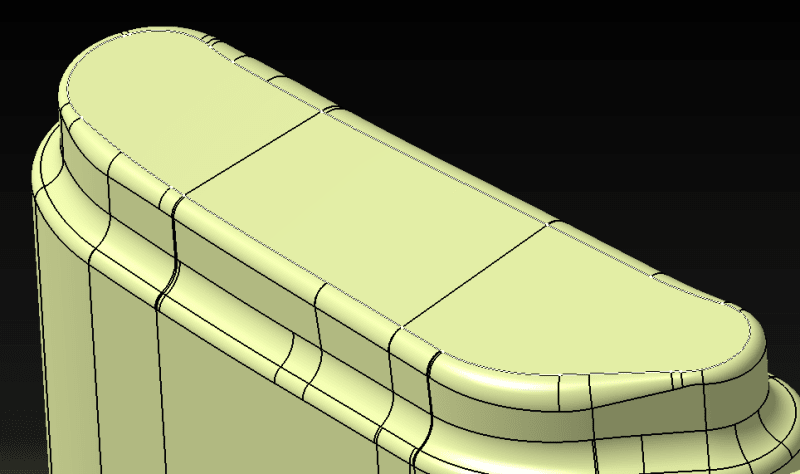

I want to make a fillet which its value follows a curve



for this case, the result should be a variable radius, with its value in each point, the value from distance, from edge to curve.

Something like CREO does:


Tiago Figueiredo
Tooling Engineer

Youtube channel:

Replies continue below

Recommended for you

Sort by date Sort by votes


Try the Face-Face Fillet.

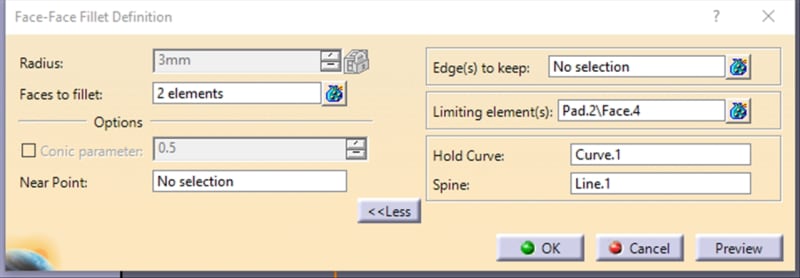

Choose two surfaces (one from each side of the hard line)
Choose your curve as the "Hold Curve"
and choose a spine.
Your existing curve might work as the spine as well.


Upvote 0 Downvote

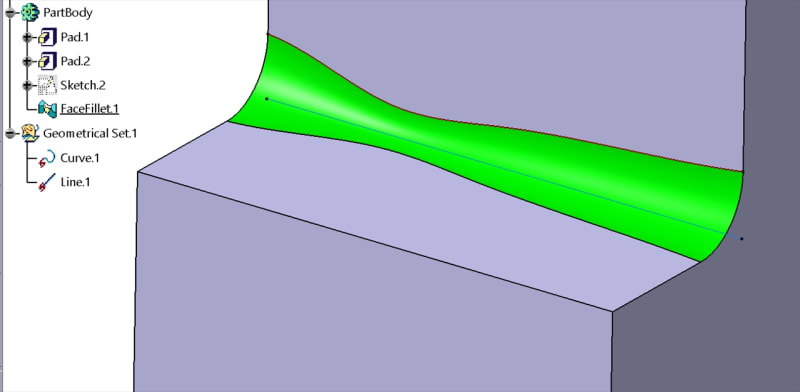

The hold curve will give you a symmetrical variable fillet, i.e. both faces will follow the (one) hold curve. If you want to specify a curve for each face, try the styling fillet (which is capable of two hold curves, one for each face)
