Surface Design Issues

Jashe · Nov 13, 2023

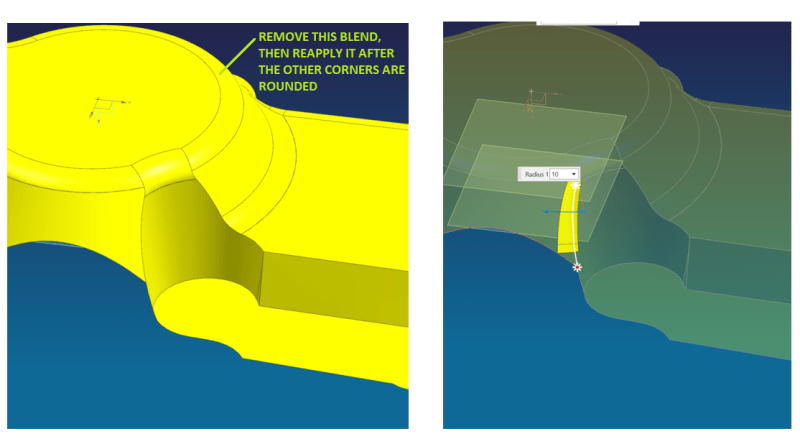

I have a couple contours that are sewn together and look like they are perfectly joined and are as smooth as can be but when I go to put a fillet on it won't do the whole corner. I've attached an image. Please let me know if anybody has any tips. I keep running into this issue when surface designing.

cowski · Nov 13, 2023

Edge blend or face blend? What options are you using? Is NX giving you any error or informational messages during the blend?

www.nxjournaling.com

Jashe · Nov 13, 2023

Cowski: I've attached an image of the error.

Jashe · Nov 13, 2023

Also, it was edge blend

MANox · Nov 13, 2023

Hello,

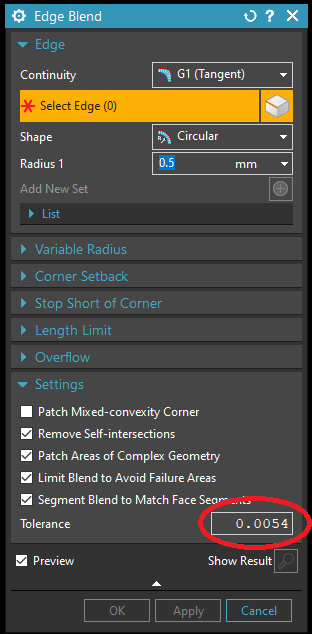

first: try change tolerance value.

Second: try use face blend.
Third: You must add face bellow existing faces.

Best regards

MANok
NX2027
TC14

jerry1423 · Nov 13, 2023

Jerry J.
UGV5-NX1899

Jashe · Nov 14, 2023

MANox: What do you mean by adding a face below existing faces?

MANox · Nov 15, 2023

Hello Jashe,

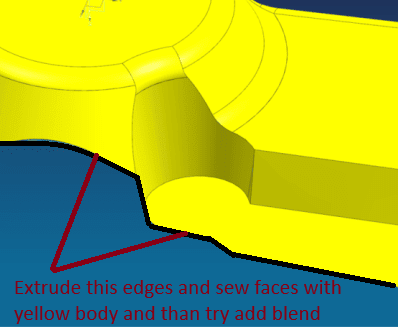

I mean: extrude free edges and sew new faces with existing sheet body, and after try add blend:

Best regards

MANok
NX2027
TC14

Rob_N · Nov 21, 2023

I agree with Manox, it's those bottom edges that are causing the failure.
extend them so the bland has somewhere to attach to. Or do a Face Blend and turn off all the trimming and sewing options, then trim it out manually.
