Selection Point on Stepped Section Line.

Status
Not open for further replies.

jerry1423

Mechanical
Aug 19, 2005
3,428
When editing a stepped section line, it can be very hard to find the selection point on the line segment.
Is there a way to change the point size, or any other setting, to make the point on the section line segment easier to see ?

Jerry J.
UGV5-NX1899

Replies continue below

Recommended for you

I'm not sure if this applies to the selection points on section lines, but in visualization preferences -> color -> handles, you can change the handle/point size.

www.nxjournaling.com

Increasing the size under "Handles" does not affect the selection points on the section line.
Thanks

Jerry J.
UGV5-NX1899

Not sure if it works anymore, but the old trick used to be to crank up the calibration size. This would result in the onscreen representation being larger than the actual item when the view zoom was set to 1.0. This had a side effect where all the temporary geometry (splats, arrowheads, etc) appear larger onscreen. This option is found in visualization preferences -> calibration. I've never tried it myself, YMMV.

www.nxjournaling.com

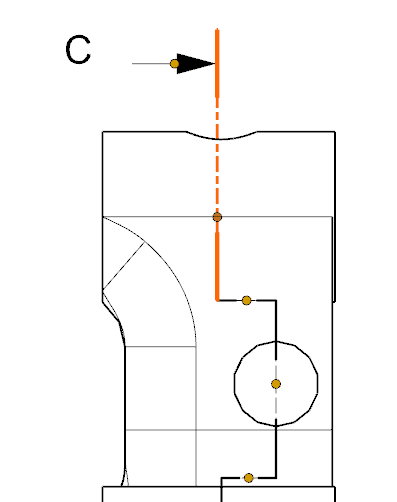

Jerry, Can you post an image on this ?
in our setup these points are "load and clear"

Edit :This is NX1980 / "2000".




Regards,
Tomas




The more you know about a subject, the more you know how little you know about that subject.
